- Integrated monobloc design simplifies installation, maintenance, and service.
- Outdoor rated and supports mounting on roof or on grade.
- Reciprocating compressor for high pressure, high temperature applications.
- Uses R-513A refrigerant, with 573 GWP and classified A1, complying with strict environmental and safety policies.
Air-to-Water Heat Pump

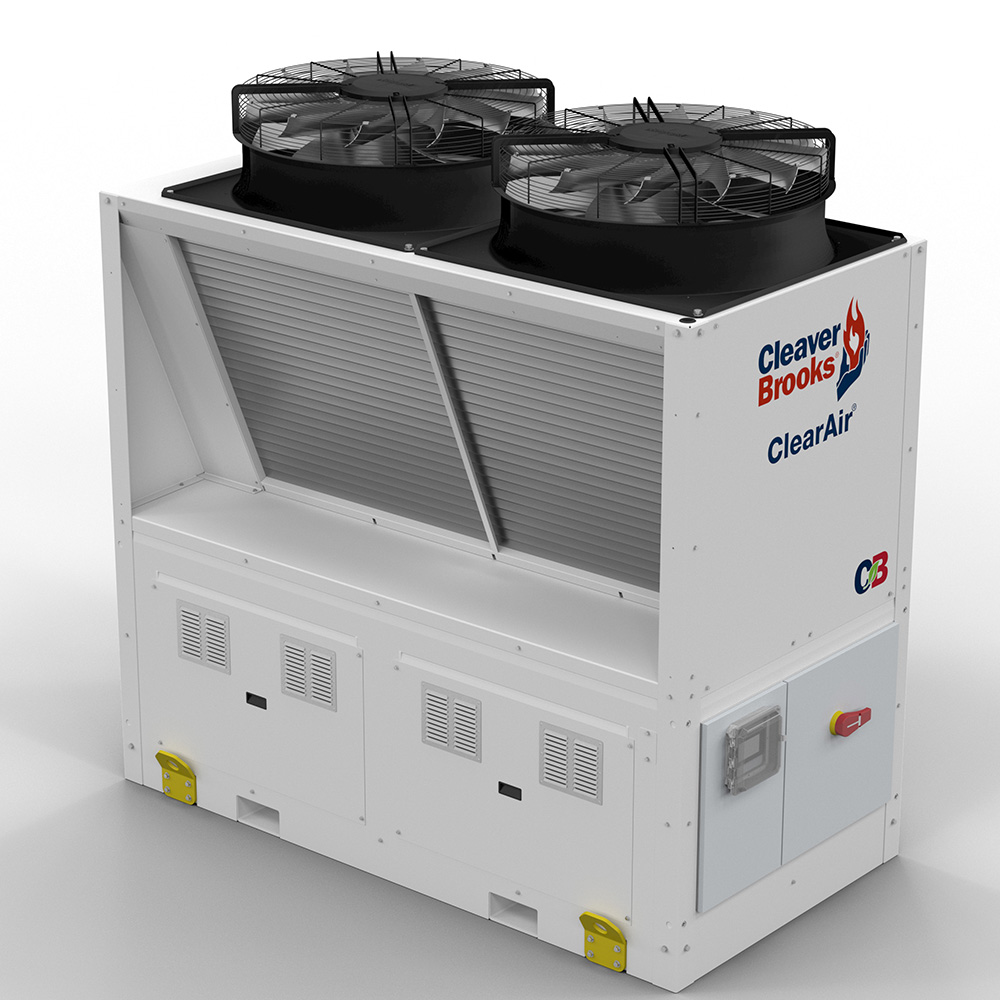

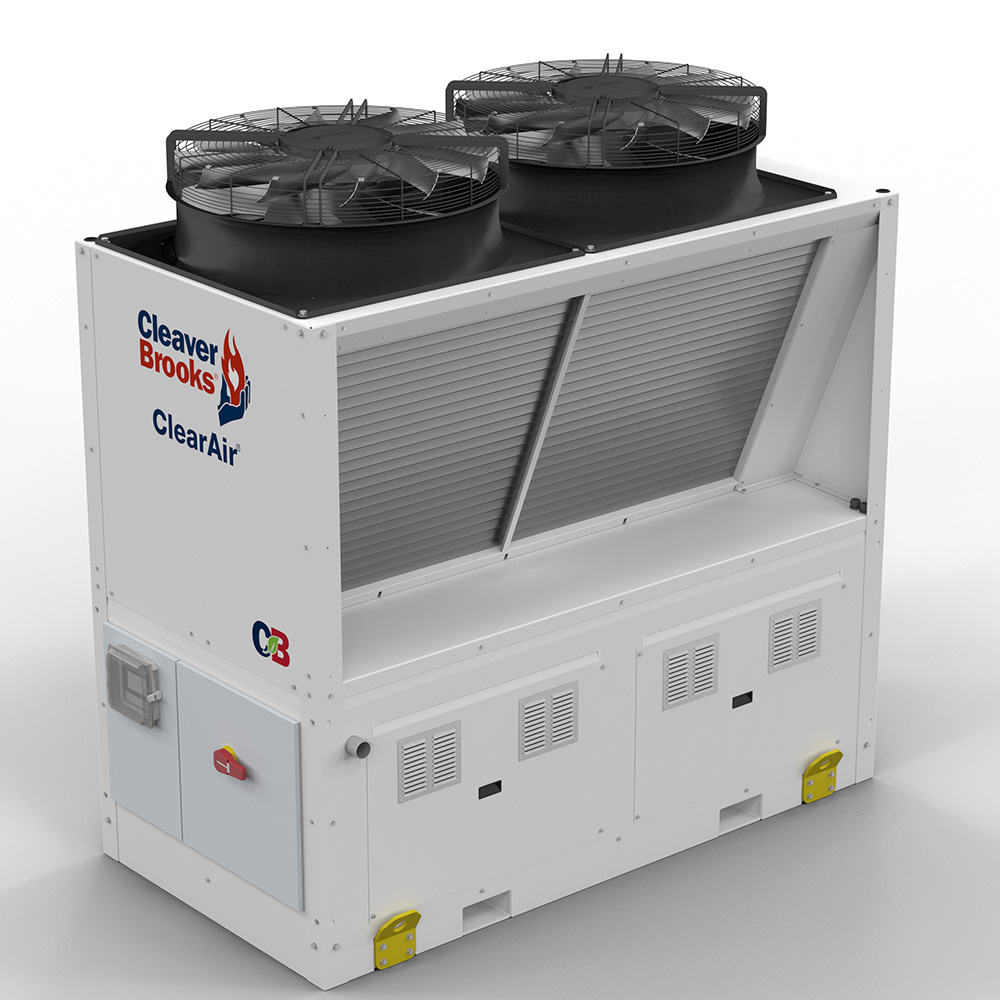

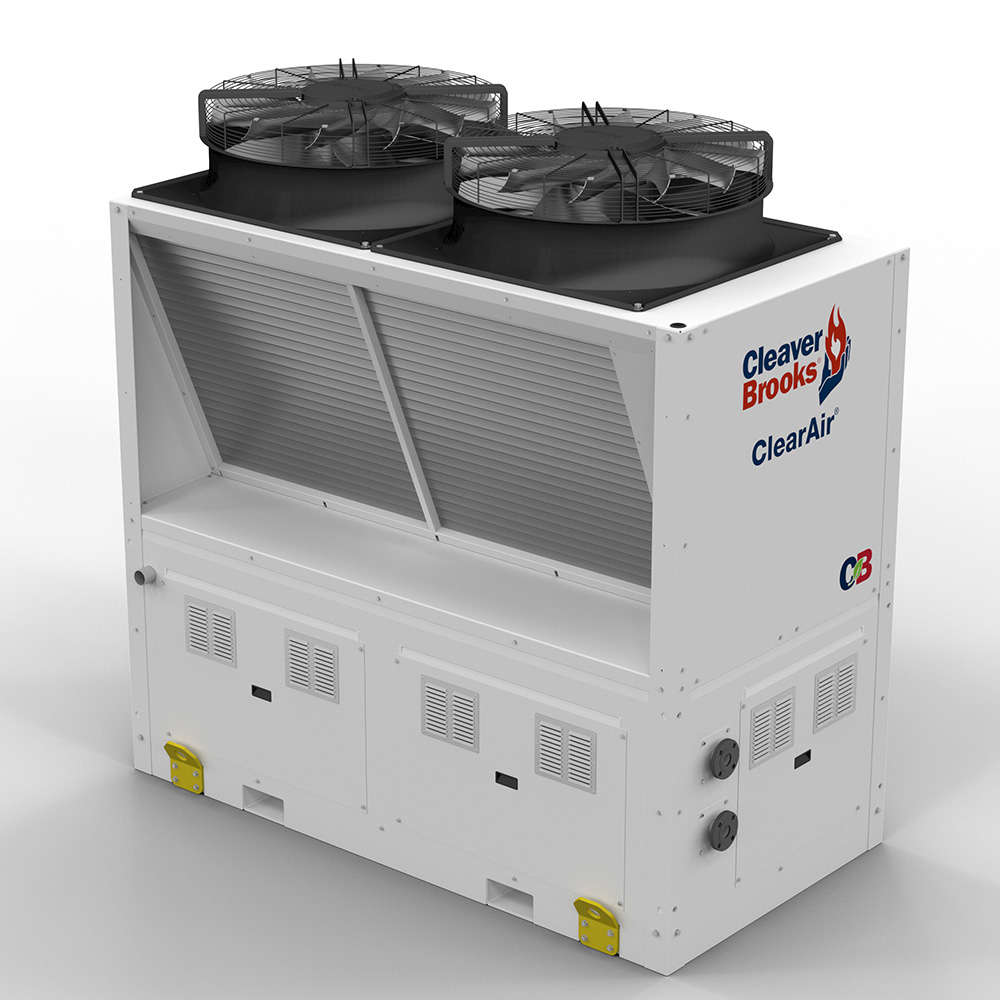

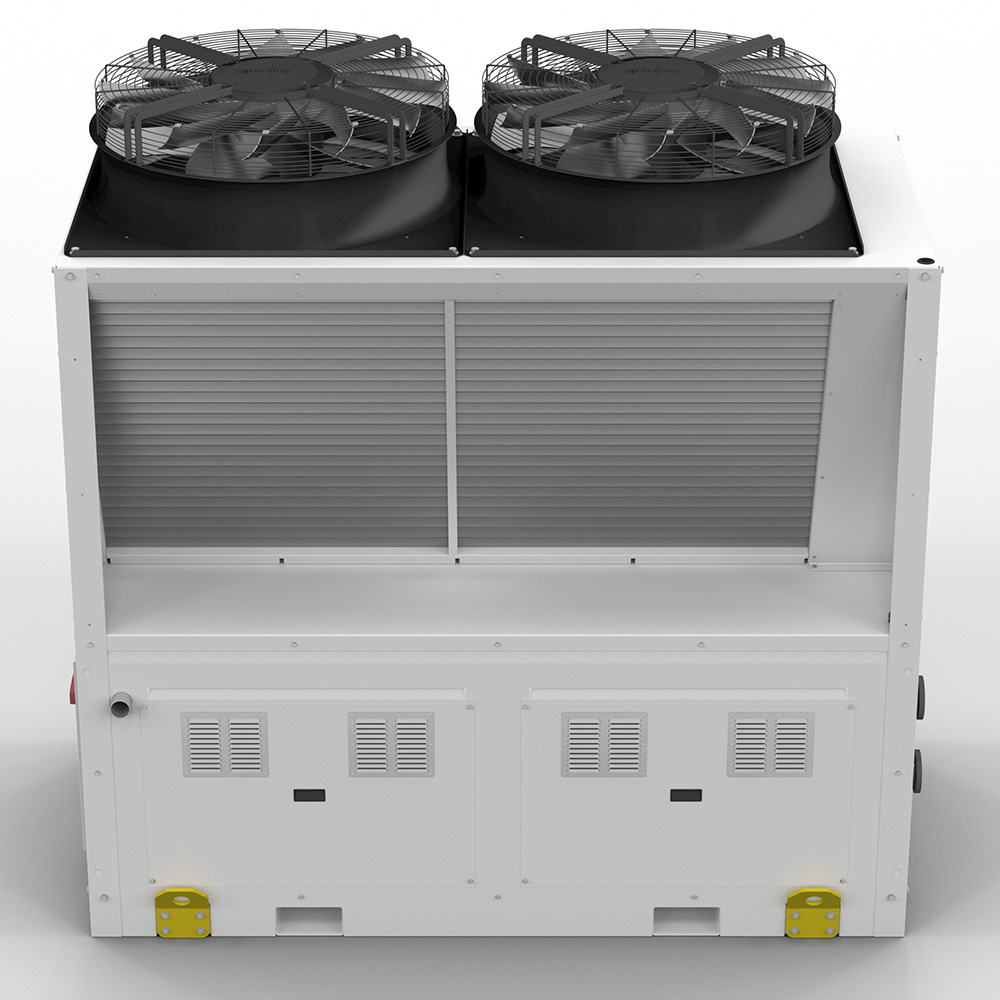

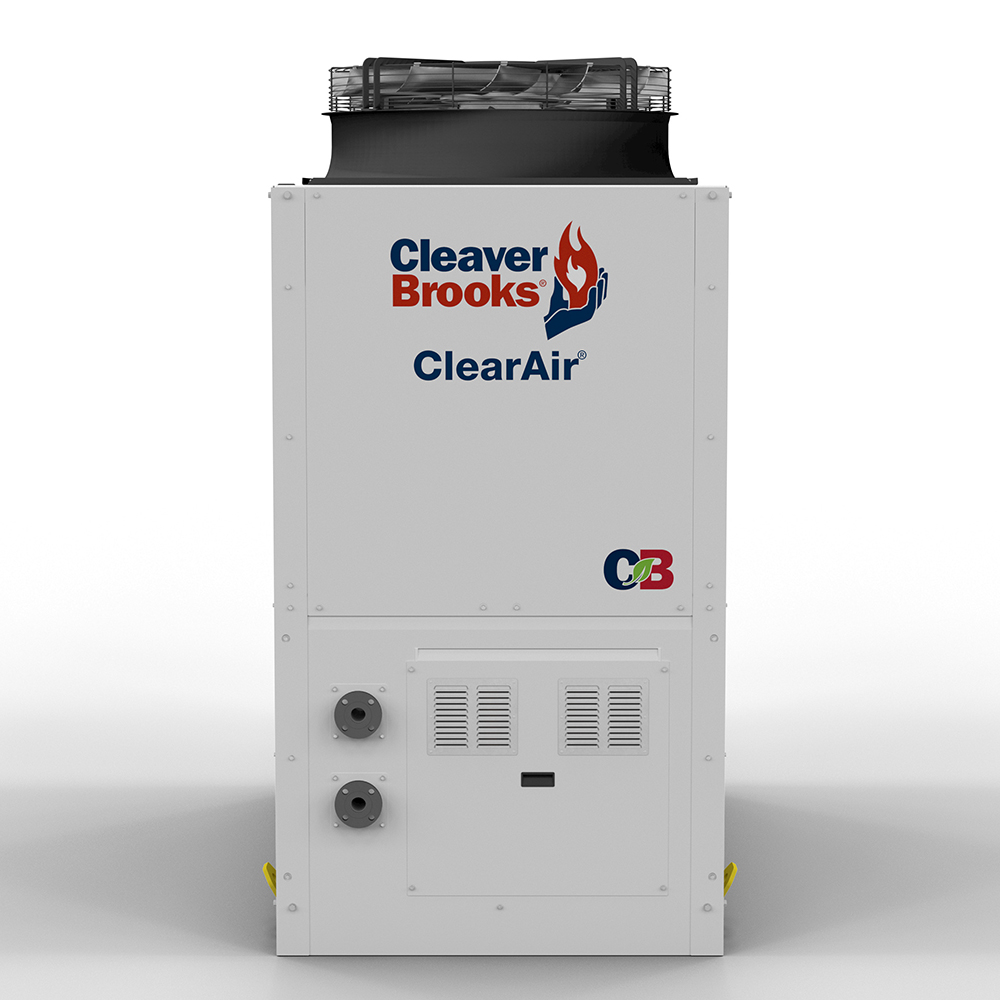

ClearAir® Heat Pump
- Zero emission, highly efficient hydronic heating solution
- Maximum outlet water temperature: 176°F (80°C)
- Nominal Capacity: 320 MBH (93.8 kW)
- Up to TBD units can be connected together for added system capacity.
The ClearAir heat pump uses electricity to deliver heating with zero site emissions, helping you meet decarbonization goals. With a Coefficient of Performance (COP) greater than 1.0, it supplies more heat energy than the electricity it consumes.
The ClearAir® heat pump can deliver outlet water temperatures up to 176°F (80°C), making it well-suited for high temperature-rated coils, radiators, and terminal units found in many existing buildings, enabling efficient system upgrades without costly equipment replacements.
The ClearAir® AW0320 heat pump is a key component of a scalable system design.
- A single unit is ideal for smaller loads or dedicated applications
- Multiple units can be connected together to scale up capacity, meet larger loads, provide redundancy, and spread out wear.
- Hybrid systems combining ClearAir® heat pumps with boilers ensure backup at peak demand, reducing carbon footprint with no risk to heating reliability
Whether your project is a retrofit, major upgrade, or new construction, the ClearAir® heat pump delivers reliable performance across a wide range of applications—all while reducing your project’s carbon footprint
-
CompressorReciprocating (single)
-
Electrical480 V/ 3-phase / 60-Hz
-
Emissions (ppm NOx)Zero Emissions
-
Nominal capacity320 MBH (98.3 kW)
-
Nominal COP2.8
-
Outlet water temperature range86°F (30°C) to 176°F (80°C)
-
RefrigerantR-513A
