Boiler Solutions for Petroleum & Refineries

Oil & Gas Industry

Cleaver-Brooks designs and manufactures custom and shop-assembled modular solutions to meet the large steam-capacity and high-pressure needs of the oil and gas industry.



What Type of Boilers are Used in the Petroleum Industry?iStock-487829113_small

Boilers are an essential component of operations in the oil and gas industry. They generate hot water and steam for drilling operations and are used in the refining process to heat crude oil and separate it into its various components.

Industrial watertube boilers (IWT) are engineered to handle the demands of the petroleum industry. Cleaver-Brooks manufactures the widest range of industrial watertube boilers (10,000 to 1,000,000 lb/hr), available in D-, A- and O-style configurations.

Both single- and dual-stage integral convective superheaters are available and can accommodate selective catalytic reduction (SCR) and CO catalyst.

Our Solutions

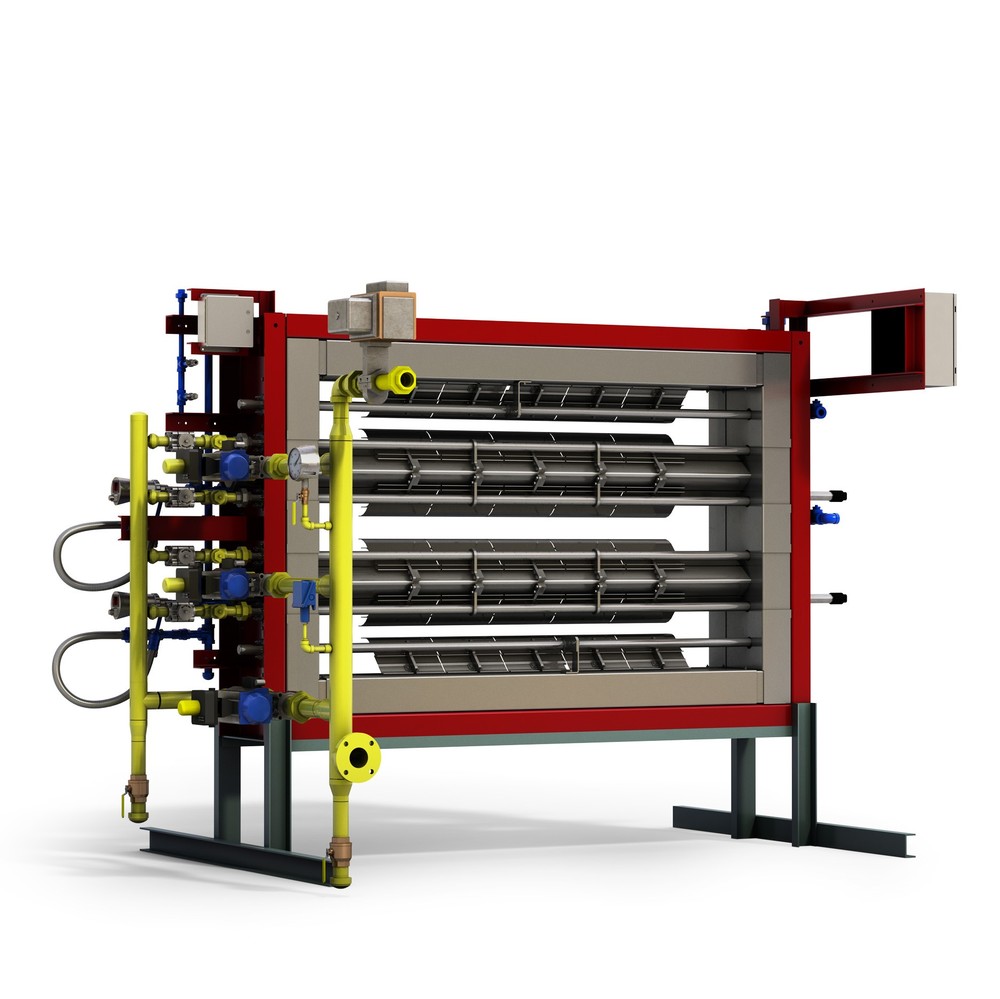

Duct Burner back

Duct Burner

Proven Technology
Customized Industrial Controls

Customized Industrial Controls

Completely Custom Control
Right Side View of a D-Style Elevated Drum Industrial Watertube Boiler

D-Type Elevated Drum Boiler

Industrial Watertube Boiler

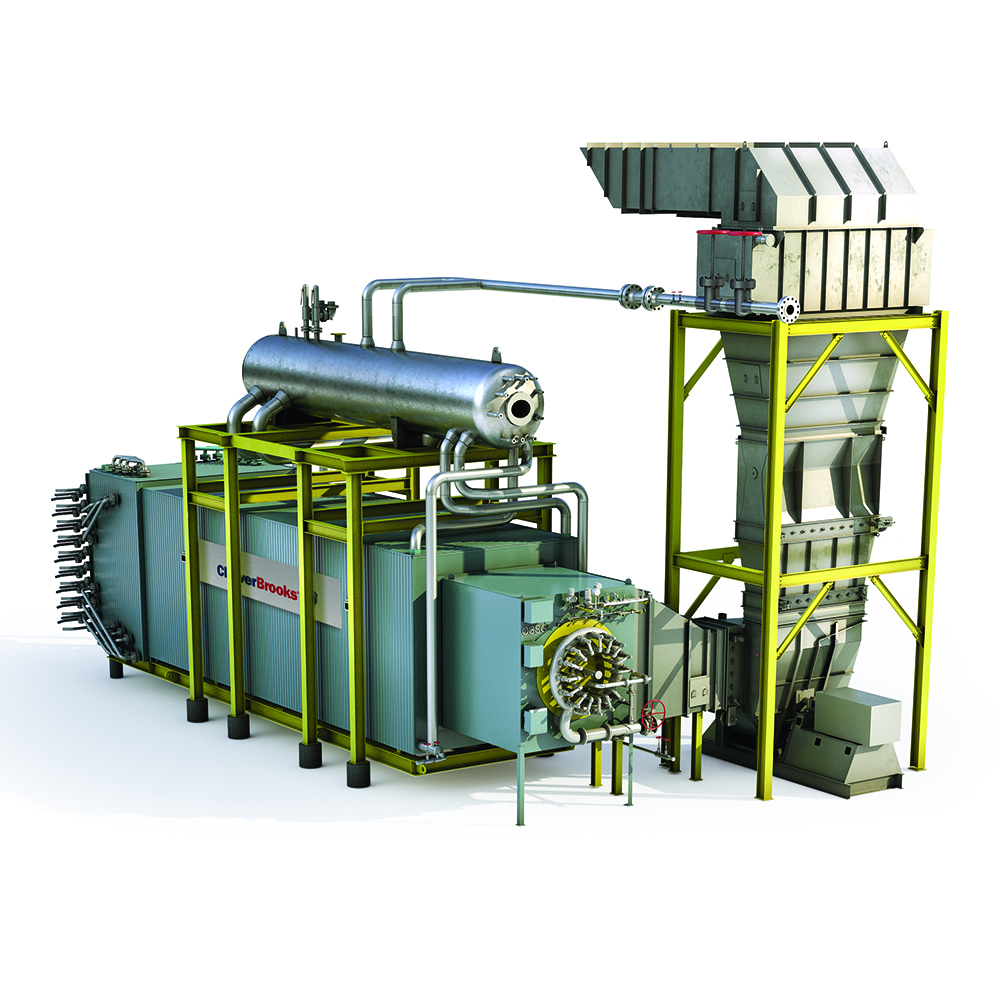

Left Side View of a Forced Circulation Oil Sands Steam Generator Strip

Forced Circulation OSSG Boiler

Oil Sands Steam Generator
Max-Fire HRSG Ingredon

Max-Fire Series HRSG Boiler

Innovation and Integration

Sustainable Solutions for the Oil and Gas Industry

Our industrial watertube boilers can fire renewable fuels such as renewable natural gas, biogas and hydrogen, we can retrofit your existing system to burn a renewable fuel.

With regard to emissions reduction, Cleaver-Brooks IWT boilers can achieve <2 ppm NOx with an ultra-low NOx burner and SCR equipment. Options are available to increase boiler efficiency by 5% on average.


Supporting Information

Feature Customer Story

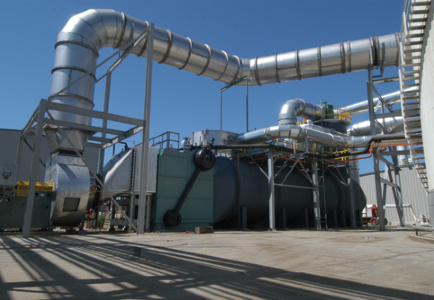

chemical ethanol plant

Ethanol Plant Increases Efficiency, Reduces Costs

Plant management wanted to provide enough steam capacity for ethanol processing while saving fuel. Cleaver-Brooks achieved these goals by installing a slant-type heat recovery steam generator (HRSG) designed for increased heat transfer and excellent heat absorption.

Learn More
Featured Article

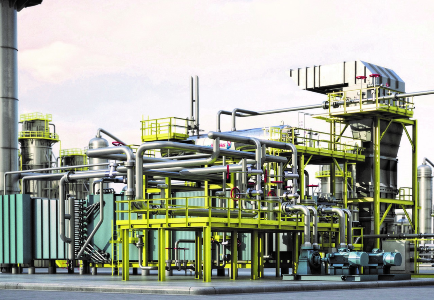

ossg front

Forced-Circulation Steam Generation for SAGD

Steam-Assisted Gravity Drainage, known as SAGD, is considered the most viable and environmentally safe recovery technology for extracting heavy oil and bitumen. Utilized for more than a decade, the process uses an advanced form of steam stimulation to extract oil from a pair of horizontal wells drilled into a reservoir.

Learn More
Featured Webinar
Design Trends in Cogeneration Webinar

Design Trends in Cogeneration Webinar

This webinar explores different methods of designing a combined heat and power system that can be used to offset a plant’s existing utility costs. Utilizing real-life examples and customer stories, this webinar digs into the reasoning behind and methodologies of cogeneration.

Learn More
