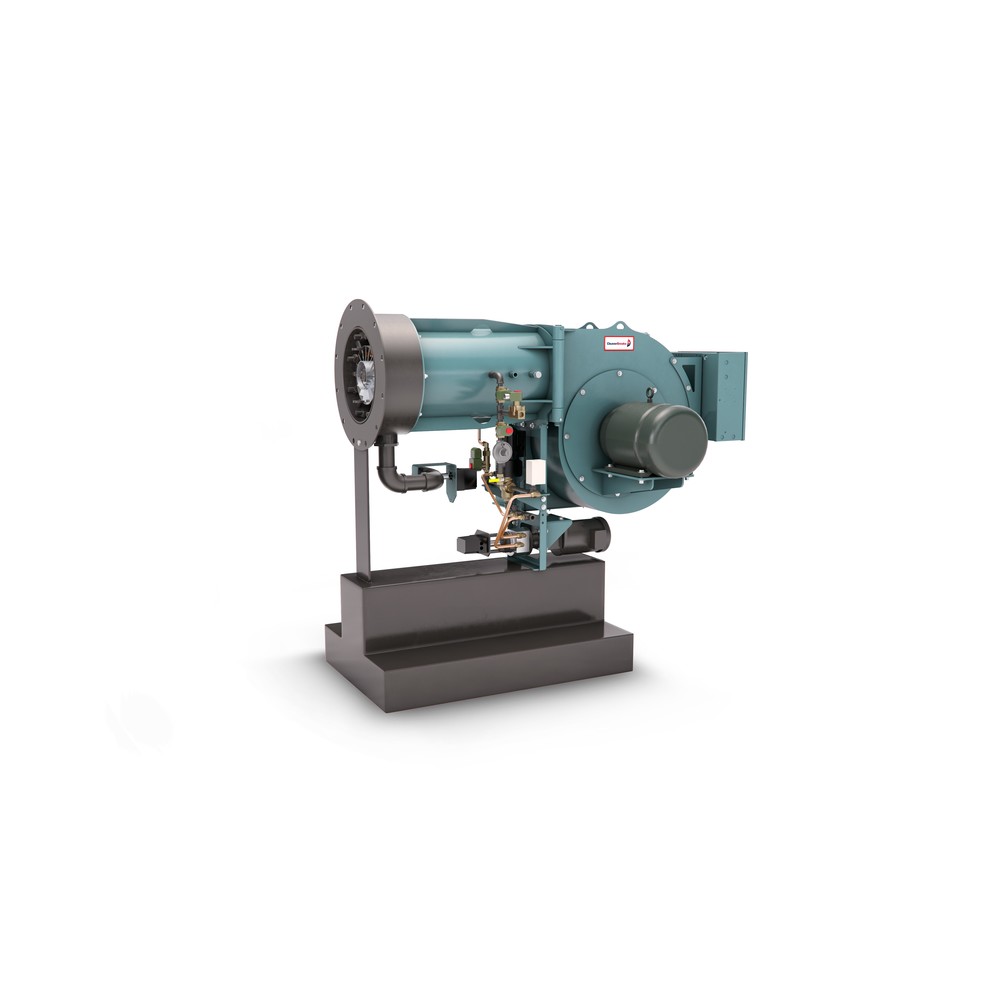

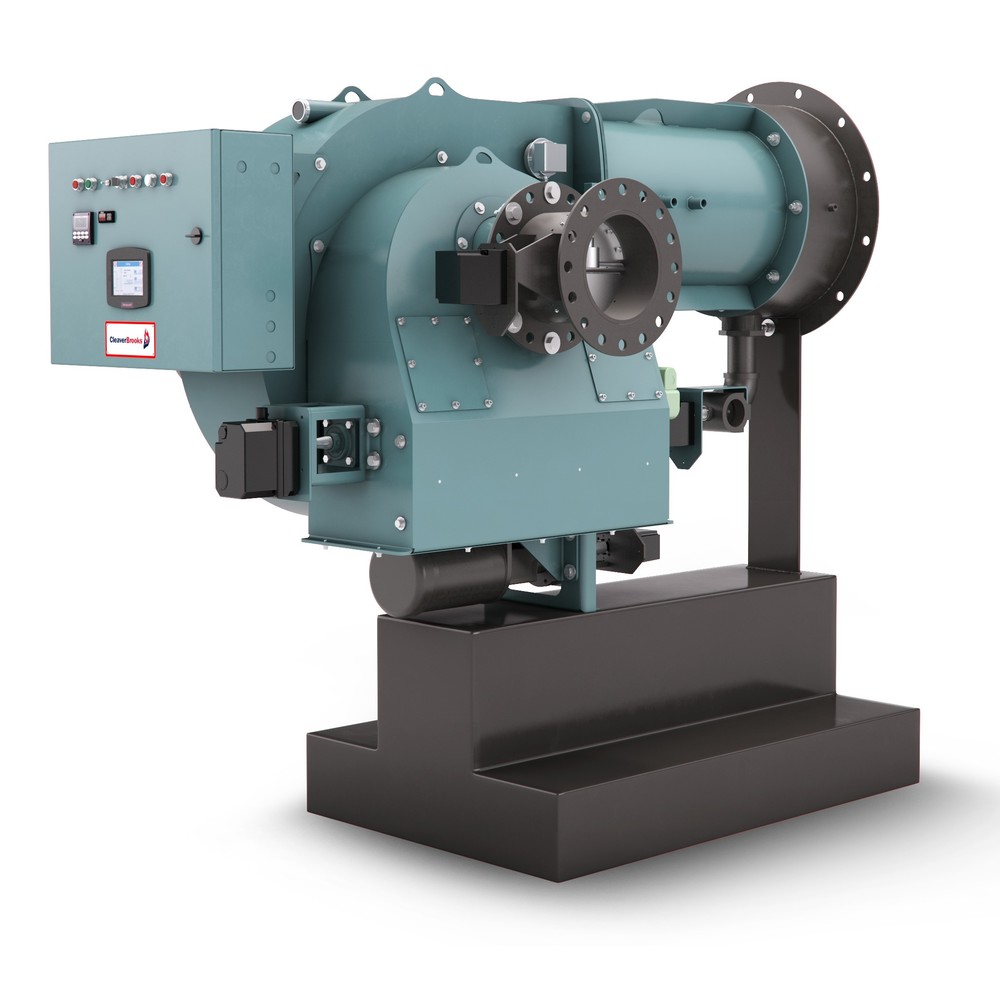

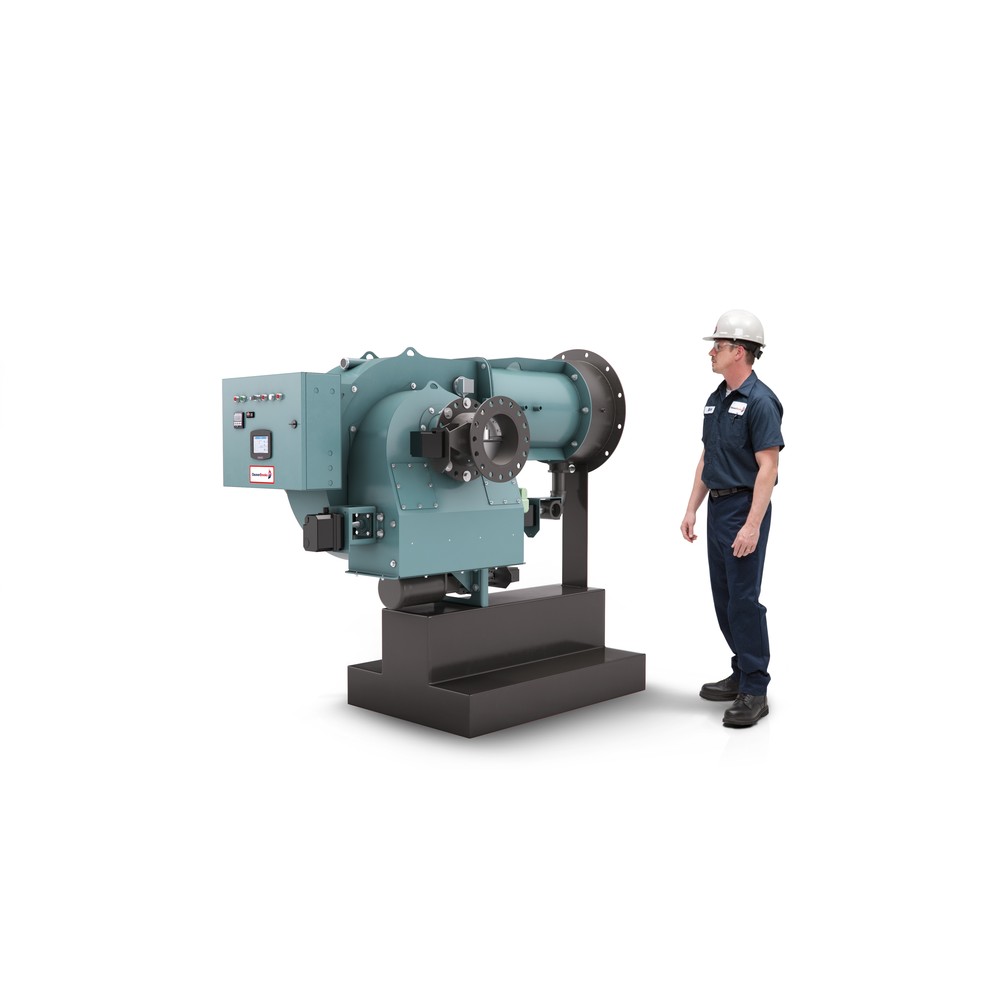

E Series

High-efficiency burner

E Series

  • 16.8 to 42.0 MMBTU/hr input range
  • 400 to 1,000 BHP
  • Gas, #2/#6 oil and combination
  • Available to <30 ppm NOx



The ProFire® E series burner provides increased boiler efficiency reducing on/off cycling.  Utilizing a low pressure drop firing head design and low blower motor horsepower requirement, it also saves electrical energy.  To maximize your boilers efficiency, the E-burner utilizes dual gas manifold and pressure air oil atomization to ensure high turndown on both fuels.

WEBINARS

Improve Boiler Performance by Replacing the Burner →

In this webinar, attendees will learn the benefits of upgrading their boiler with a new state-of-the-art burner to improve boiler efficiency and better match facility needs.

Parallel Positioning and O2 Trim →

Parallel positioning controls help a burner to optimize its fuel-to-air ratio by using dedicated motorized actuators for the fuel and air valves.

CASE STUDY

Boiler Retrofit the Right Solution at Mount Royal University →

Reduce carbon footprint and bring boilers into compliance with local gas code

  • Low motor horsepower for increased energy efficiency
  • Induced FGR (Flue Gas Recirculation) modulating valve
  • Forced draft for clean and efficient combustion
  • No. 2 oil capability for backup fuel
  • UL/cUL listed



Suitable for firetube, firebox, and watertube boilers; the E series features a low pressure drop firing head design and low blower motor horsepower requirement for increase efficiencies. Advanced technology allows the E series to offer low NOx emissions options, up to 10:1 turndown on natural gas, up to 8:1 turndown on light oil and up to 8:1 turndown on low NOx natural gas.

  • Process Steam
  • Industrial Process
  • Waste Heat Recovery
  • Hospital and Healthcare
  • Laundry and Dry Cleaning
  • Emissions (ppm NOx)
    Uncontrolled, <30
  • Fuel
    Gas, Oil, Comb.
  • Furnace Pressure
    4 - 9
  • Boiler Horsepower
    400 - 1,000
  • Input Capacity
    16,800 - 42,000
  • Min Gas Pressure
    2.1
  • Mode of Operation
    Full Modulation
  • Oil Input (US GPH)
    120 - 300
  • Parallel Positioning
    Standard
  • Turndown
    Up to 10:1
