- Anti-scaling circulator
- Inlet strainers
- Double-walled heat exchanger design
- 3-way electro-hydraulic modulating valve
- Full color touchscreen controller with PID set point control
- Control system includes alarm contacts, data-logging, and Modbus communication
- Remote monitoring available

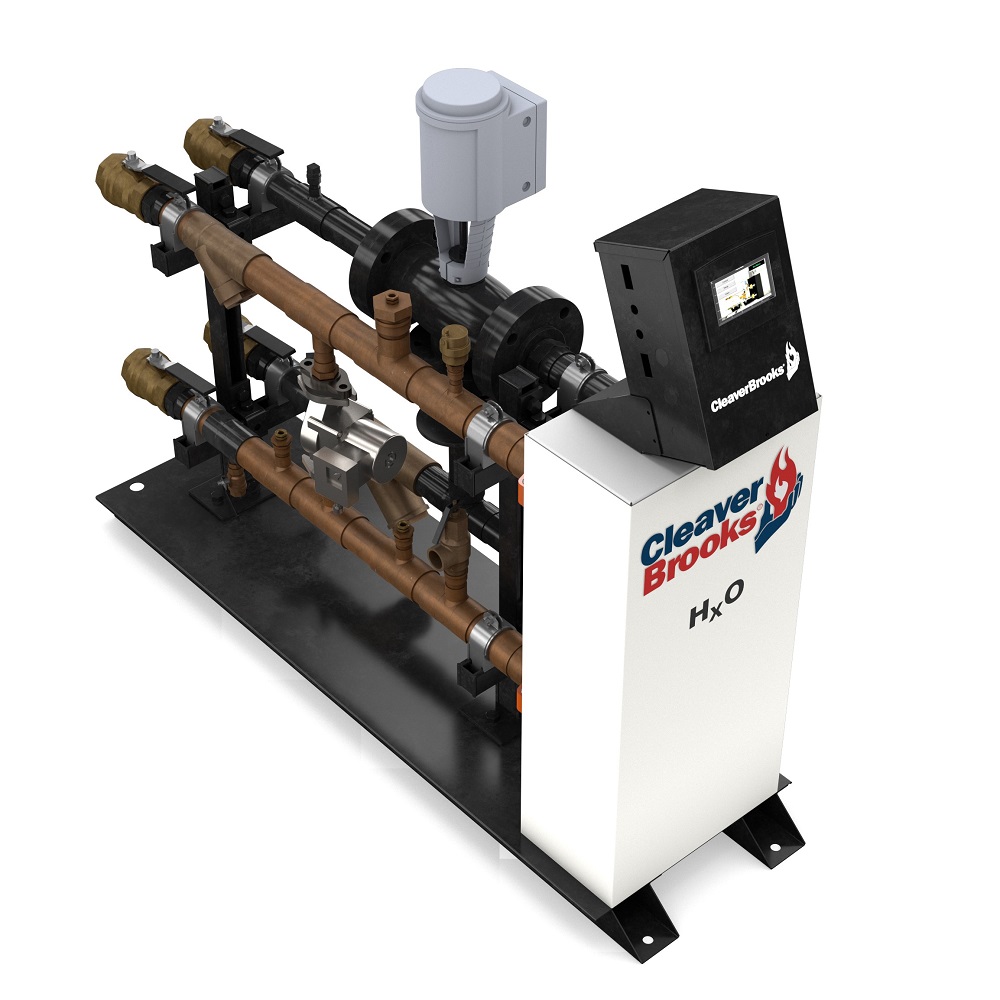

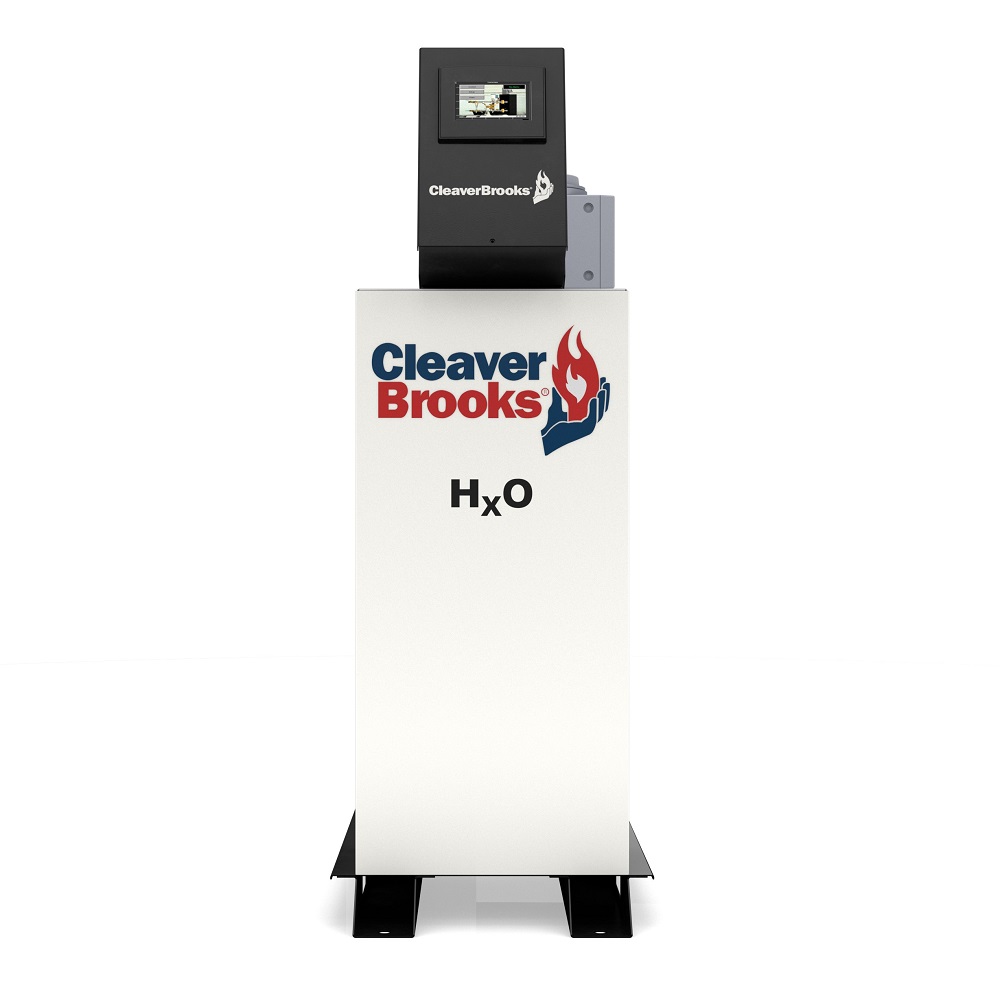

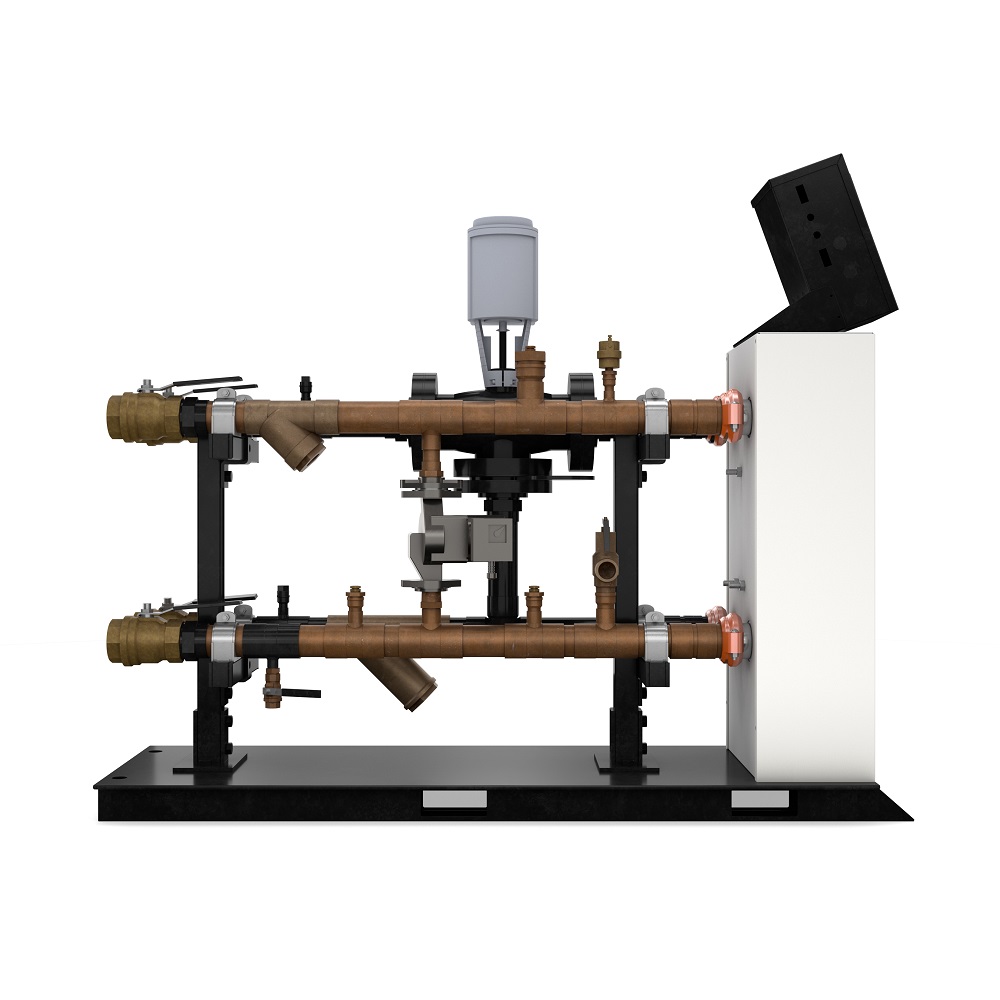

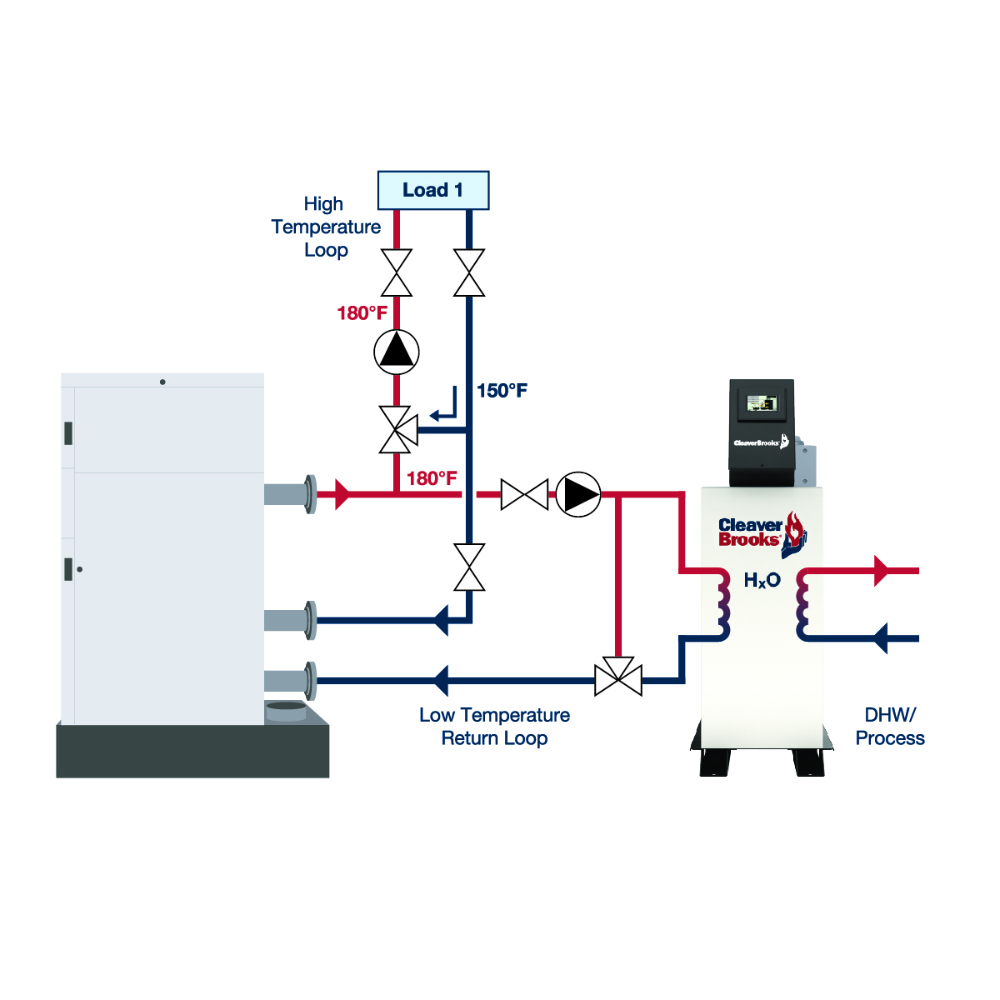

The HxO is a packaged, tankless water heater solution that provides optimal energy control between a hydronic boiler loop and a (domestic hot water) DHW or process water. Heat is extracted from the boiler loop through a very compact and efficient heat exchanger and is transferred to the cold domestic water supply. Each HxO model has been designed for an application with the specific flow and temperature ranges on the process and boiler sides. The intelliFLO-enabled PID temperature setpoint control maintains process outlet temperature within +/- 2° F of set point.
