LCS

Tank Level Control

LCS

  • Pressurized or atmospheric tank level control
  • Configurable electronic control
  • 1 to 2 modulating valves
  • Maintains water level
  • Single-tank system with LCS150 and a two-tank system with LCS250



The LCS control system was designed to provide easy level control for deaerators and atmospheric surge or condensate tanks. By utilizing a simple PLC platform, the LCS is configurable to adapt to a number of different system configurations. The LCS250 offers two-tank level control.

CASE STUDY

Cleaver-Brooks System Selected for Clemens Food Group Plant →

Provide steam for a new 600,000 square foot pork processing facility.

Boiler Retrofit the Right Solution at Mount Royal University →

Reduce carbon footprint and bring boilers into compliance with local gas code.

Retrofitting Boilers Reduces Emissions and Fuel Usage →

Increase the efficiency and reduce emissions of a nearly 30-year old property.

  • Single level-control system
  • PLC controlled
  • Modbus communications
  • Data logging to optional Micro SD card
  • User-selectable set points



Single Tank Level Control: The LCS 150 system accepts a 4-20 mA input for use as a level signal. Data is available via Modbus RTU communications or logged to an optional Micro SD card. Setup and control are easy with the LCS150’s interface user-friendly menu system and setup screens.

The LCS is a great entry-level control system, and is ideal in situations where electronic level control is preferred over mechanical level control.

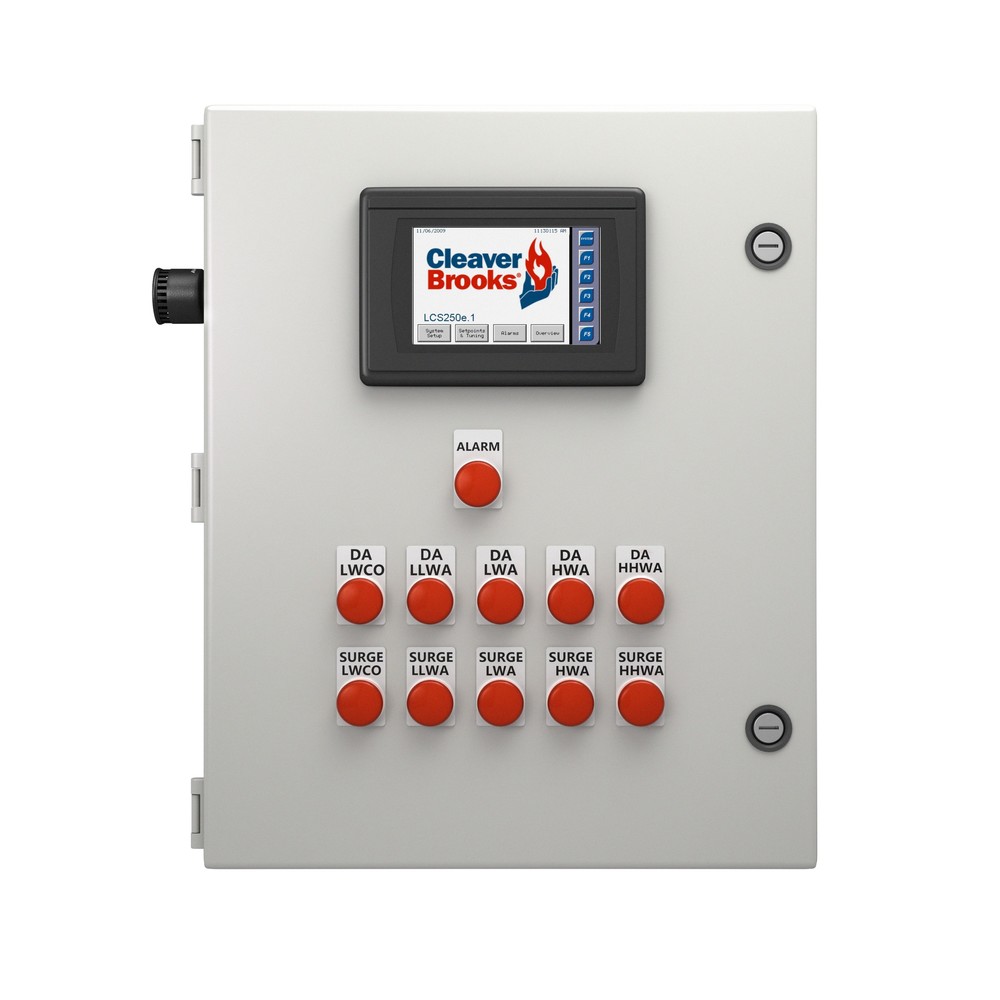

Two-Tank Level Control The LCS 250 is used when level control is provided for the deaerator tank while the surge tank receives feed control, with a bias to limit the valve position according to surge tank level. The system accepts a 4-20 mA input signal from each of the deaerator and surge level transmitters. Data is available via Modbus RTU communications or logged to an optional Micro SD card. The LCS250’s interface puts the control of the level control of a single tank deaerator and surge system at your fingertips with its user-friendly menu system and screens.

  • Two tank level-control system
  • PLC controlled
  • Modbus communications
  • Data logging to optional Micro SD card
  • User-selectable set points
  • The LCS250 is a great entry-level control system, and is ideal in situations where electronic level control is preferred over mechanical level control in a two-tank system.



  • Process Steam
  • Industrial Process
  • Building Heat
  • Sterilization
  • Humidification
  • Waste Heat Recovery
  • Healthcare
  • Power and Utilities
  • Refineries and Petrochemical
  • Laundry and Dry Cleaning
LCS150e.1 Brochure
LCS250e.1 Brochure
LCS 150 Operation and Maintenance Manual
LCS 250 Operation and Maintenance Manual
LCS150e.1 Boiler Book
LCS250e.1 Boiler Book
