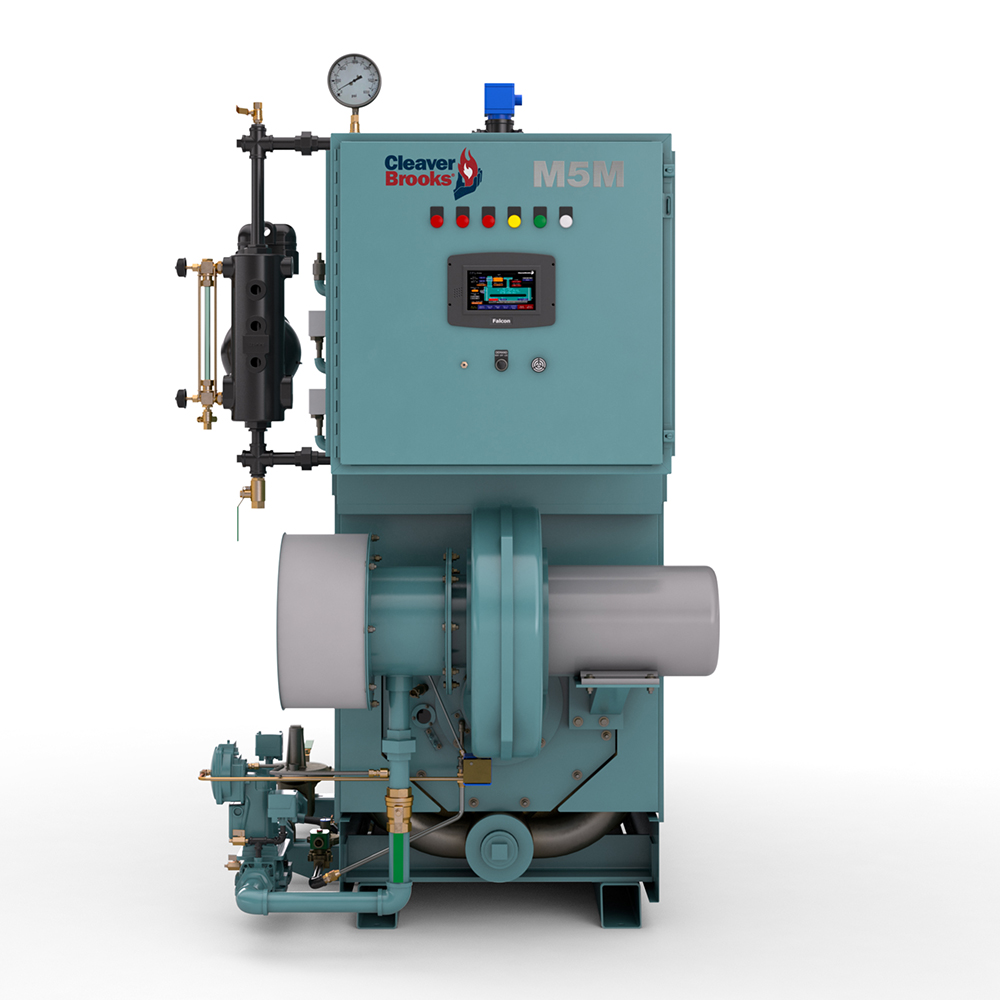

M5M Watertube Boiler

Premix Burner Technology

M5M Watertube Boiler

  • Steam or Hot Water
  • 2,000-6,000 MBH Input
  • Natural Gas, Propane
  • 15-500 psig Design Pressure (Steam)
  • 160-250 psig Design Pressure (Hot Water)
  • Premix Burner Technology
  • Standard sub-20 ppm NOx

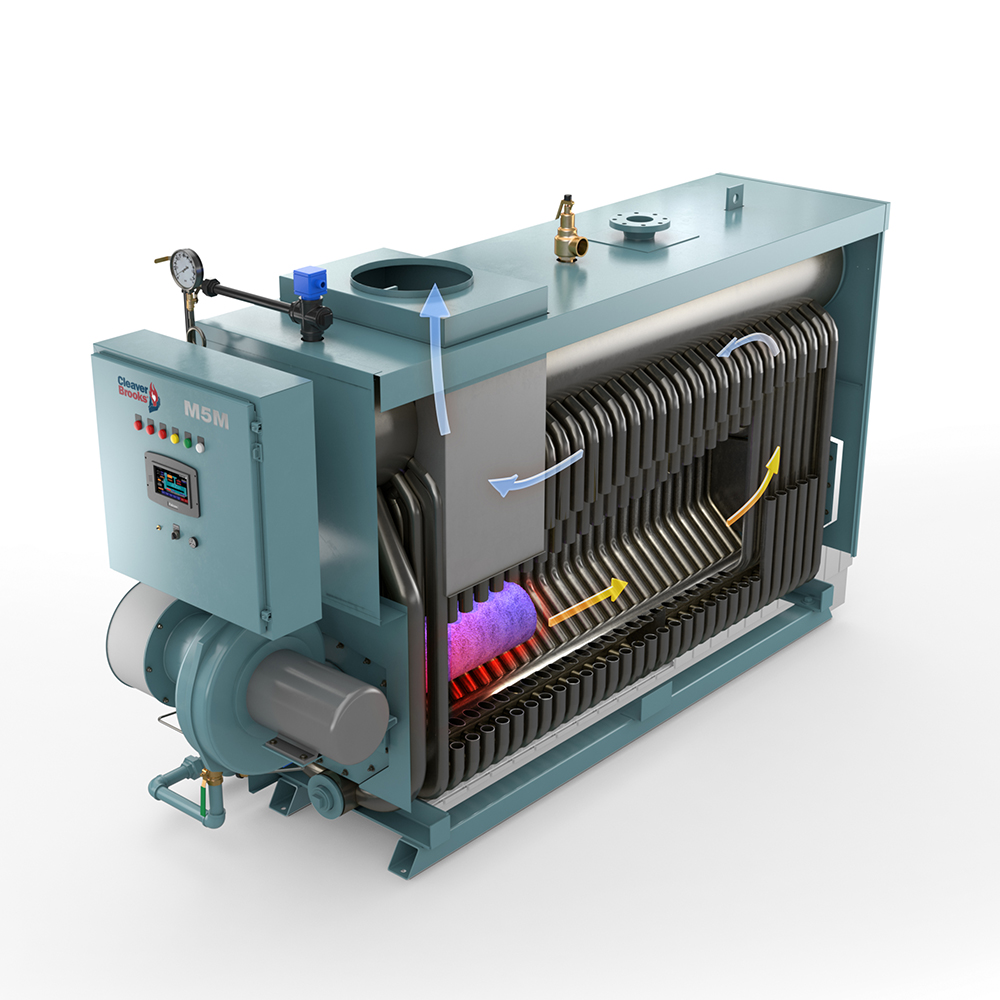

The M5M is a membrane wall watertube boiler that achieves best-in-class combustion performance with low emissions that can fit through a doorway. Premix burner technology enables the boiler to attain <20 ppm NOx without FGR and <10 CO as standard on natural gas. The linkageless burner provides fully modulating turndown without the use of complex air/fuel mixing valves.

WEBINARS

Steam Applications, Terminology and How to Achieve Best Results →

Learn how the industry defines steam from utility, saturated and superheated to filtered and clean. Applications for the various steam types will be covered along with operation best practices.

Boiler Room Installation Considerations for Safety, Reliability, and Efficiency →

There are a number of factors that are important to consider when installing either a steam or hydronic boiler system in order to maximize safety, reliability and efficiency. Learn about the several aspects that help to ensure proper boiler installation.

  • Up to 5:1 turndown
  • Linkageless control automatically adjusts the air/gas mixture
  • Maintains peak operating efficiency during low system demand
  • Increases boiler room floor space by 50%
  • Ease of installation



Premix burner technology enables the boiler to attain <20 ppm NOx without FGR and <10 CO as standard on natural gas. The linkageless burner provides fully modulating turndown without the use of complex air/fuel mixing valves. The M5M is a compact unit that reduces floor space by 50% with weight savings of 40% while providing steam or hot water for commercial or industrial applications. The complete package fits through a standard doorway, ideal for replacement of existing units with ease of installation and minimal cost.

  • Process Steam
  • Industrial Process
  • Building Heat
  • Sterilization
  • Healthcare
  • Design Temperature (deg F)
    235, 340, 355,380, 410
  • Emissions (ppm NOx)
    <20
  • Fuel
    Natural Gas, Propane
  • Boiler Horsepower
    48 - 143
  • Input Capacity
    2,000 - 6,000
  • Number Of Passes
    2
  • Steam Or Hot Water
    Both
  • Vessel Design
    Watertube
Model M5M Brochure
Packaged Steam Solutions Brochure
Steam Reference Guide
Understanding Terminology White Paper
Understanding the Differences Between HHV and LHV Efficiency Calculations
M5M Hot Water ADSK Files
M5M Hot Water DWG Files
M5M Hot Water STEP Files
M5M Steam ADSK Files
M5M Steam DWG Files
M5M Steam STEP Files
M5M Boiler Book
M5M Operation and Maintenance Manual
Model M5M Dimensions and Ratings
