The Cleaver-Brooks HRSG achieves >80% efficiency compared to 56% for traditional technologies. It reduces up to 7.0 MMBtu/hr of fuel in conventional boilers and eliminates 2,870 tons of CO2 emissions annually per 1 MWe GT output.
- Maximum shop assembly minimizes field erection costs.
- Vertical tube natural circulation design.
- Accommodation for addition of steam superheater.
- Large separate steam drums with high efficiency drum internals.
- Hydraulically matched system of downcomers and risers
- Ductwork, stacks, and platforms & ladders
- Supplemental firing systems designed to fire natural gas, #2 oil, process gas, digester gas, and landfill gas
- CO / NOx selective catalytic reduction (SCR) systems
- Single source supplier for integrated boiler, burner, and controls solutions, selective catalytic reduction (SCR) and CO catalyst.

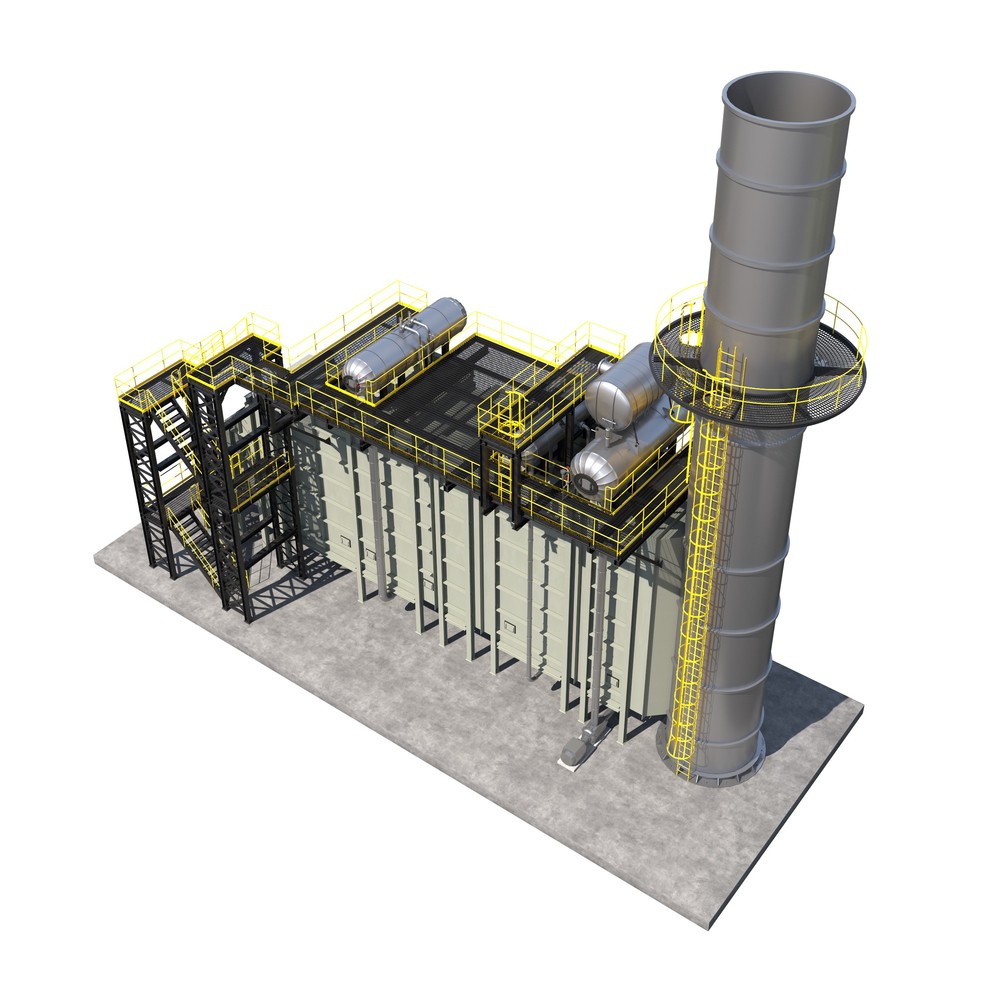

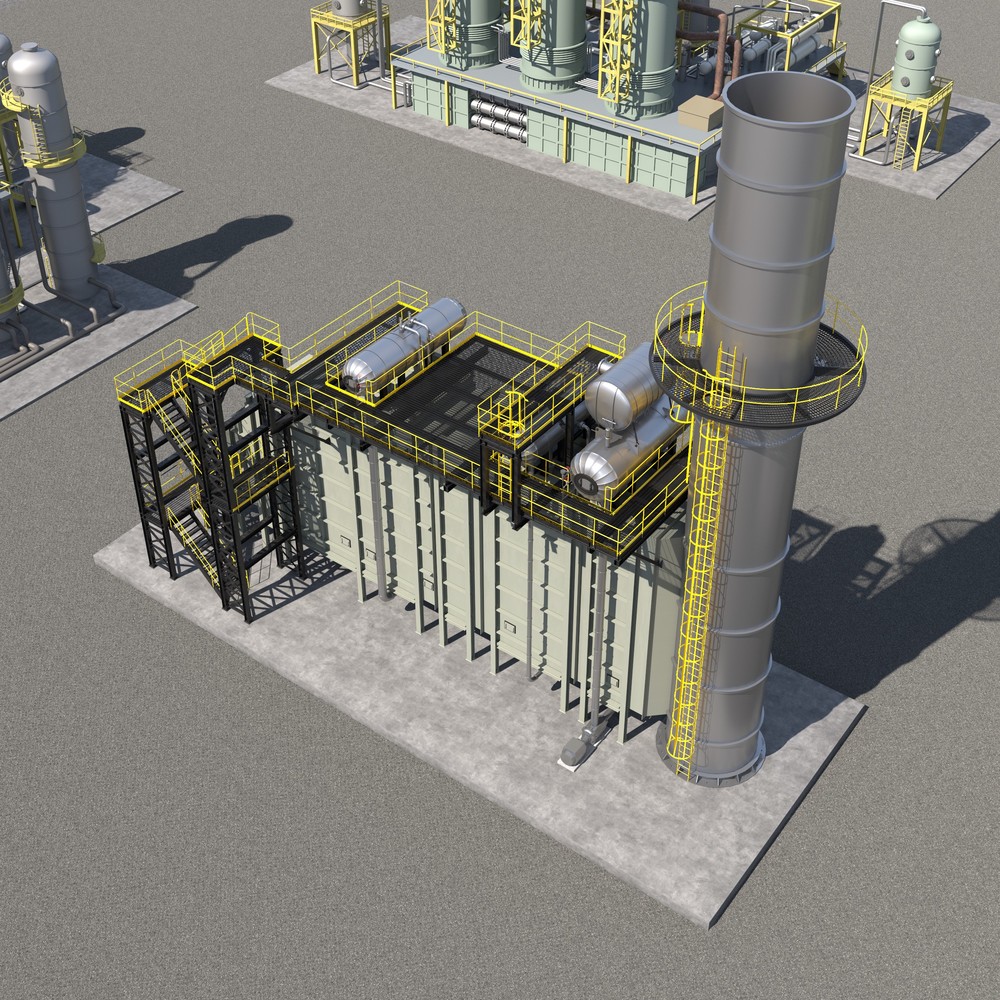

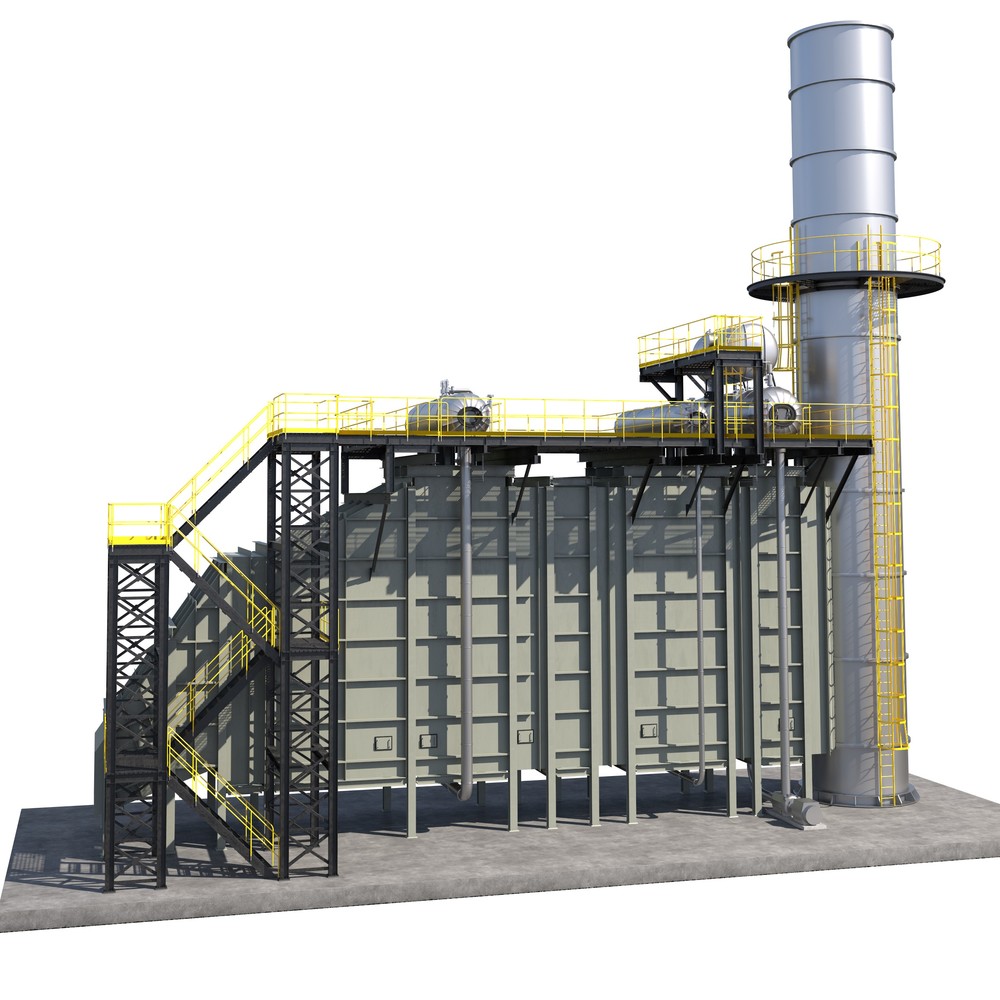

Cleaver-Brooks Modular HRSGs are designed to accommodate exhaust flows from 500,000 to 1,000,000 lbs/hr. The Modular HRSG is designed for maximum shop assembly which minimizes field erection time and costs. We offer natural circulation designs for minimal parasitic power consumption and reduced maintenance of rotating equipment. Our expert engineering teams review every aspect of the design and incorporate proven design features across all product lines.
