- Linkageless system standard for optimal control throughout firing range
- DC pulse width modulation allows full blower speed control without the air dampers
- Full enclosed air housing featured a hinged cover for easy access to internal components and quiet operation
- Sealed combustion eliminates the need for outside air dampers and make-up air units typically required in every boiler room
- UL/cUL listed and CSA package listed

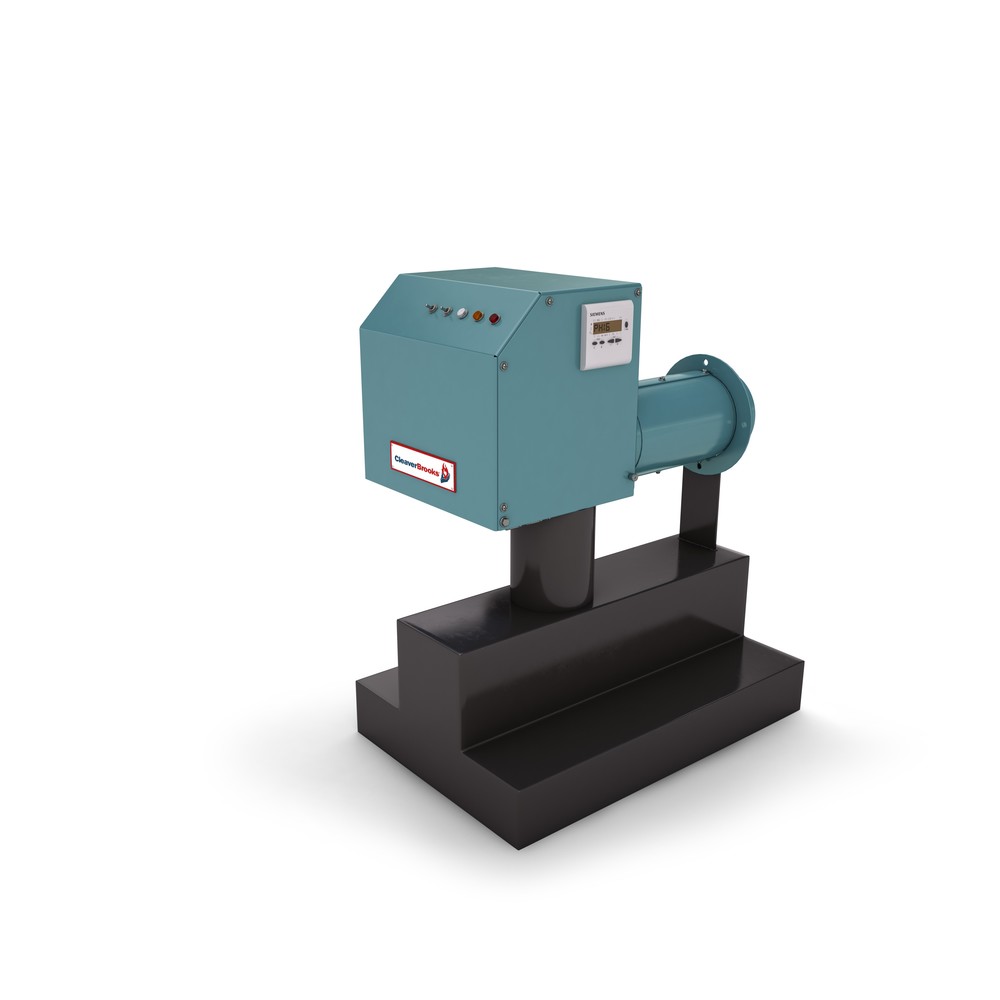

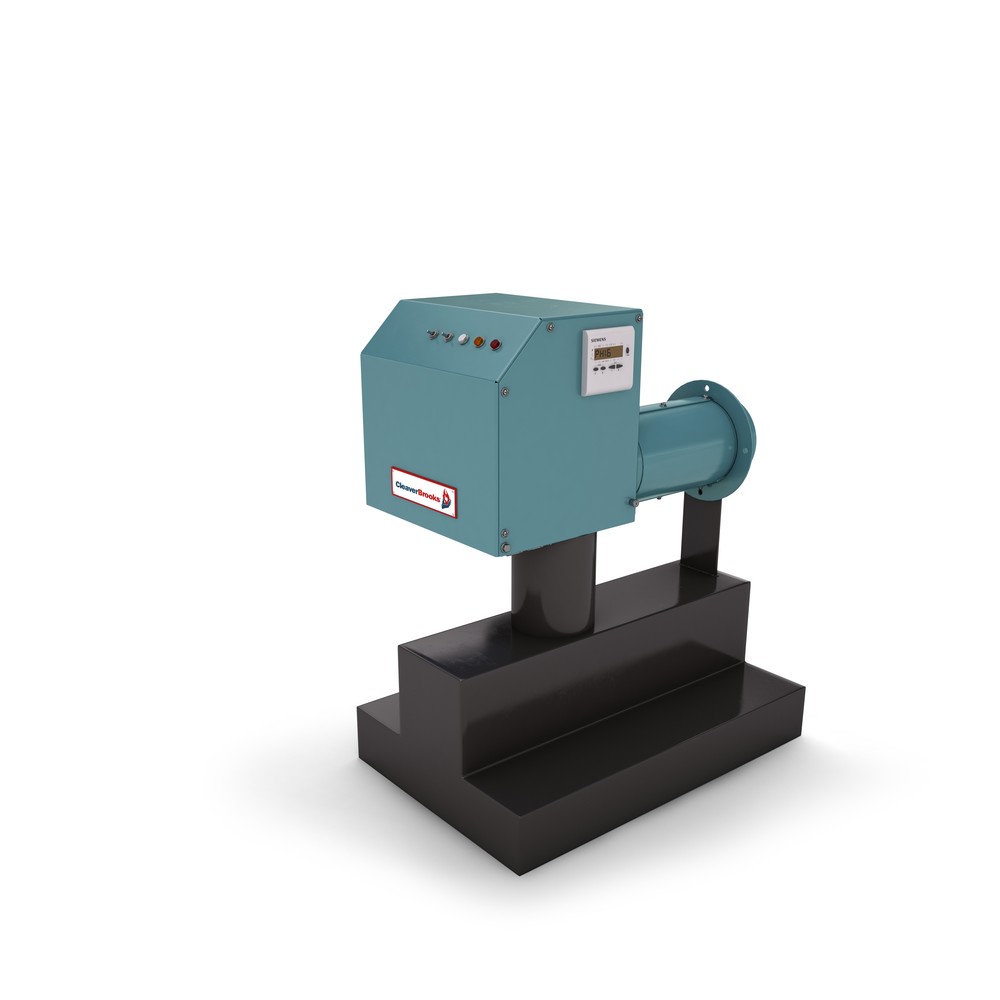

Designed around efficiency and operational simplicity, the Q series burner is a perfect solution to your cast iron, commercial watertube, firetube, and process heating applications. The Q series can be set up for on/off, low-high-low, or full modulation without the use of dampers or complicated linkage setup. Utilizing DC pulse width modulation, the Q series is offered for natural gas, LP or digester firing from 0.4 to 3.8 MM BTU per hour. The Q burner’s totally enclosed, compact design allows for easy installation and quiet operation with provisions for sealed combustion. The simplicity of the design makes this a truly “plug and play” burner solution for your heating needs.
