- C-B NT technology adaptable to all types of combustion chamber configurations
- Top or bottom FGR connection option (LNS1 models only)
- Air-atomizing, low-pressure oil nozzle with steam atomization optional
- Parallel positioning is standard for optimal control throughout the firing range (NT models only)
- Cam trim with 14-point adjustment range for consistent air/fuel ratios (S1/LNS1 models only)

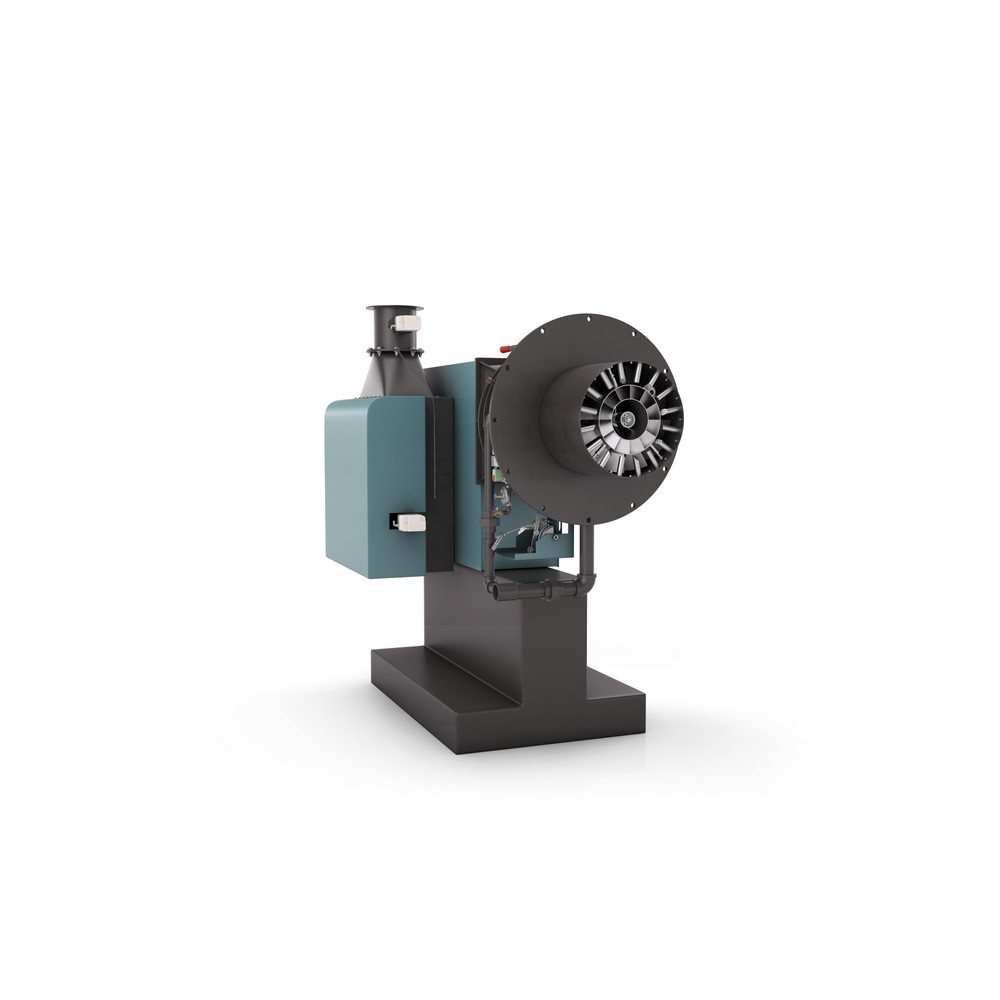

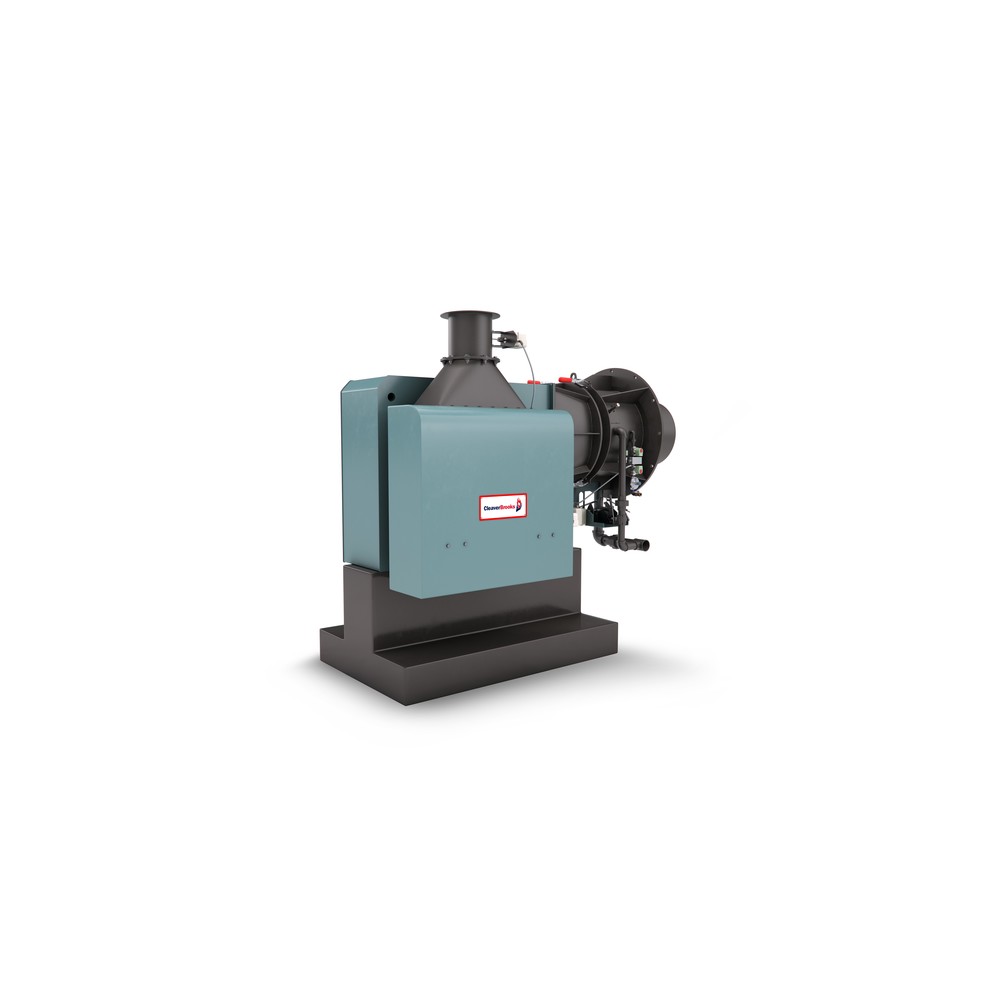

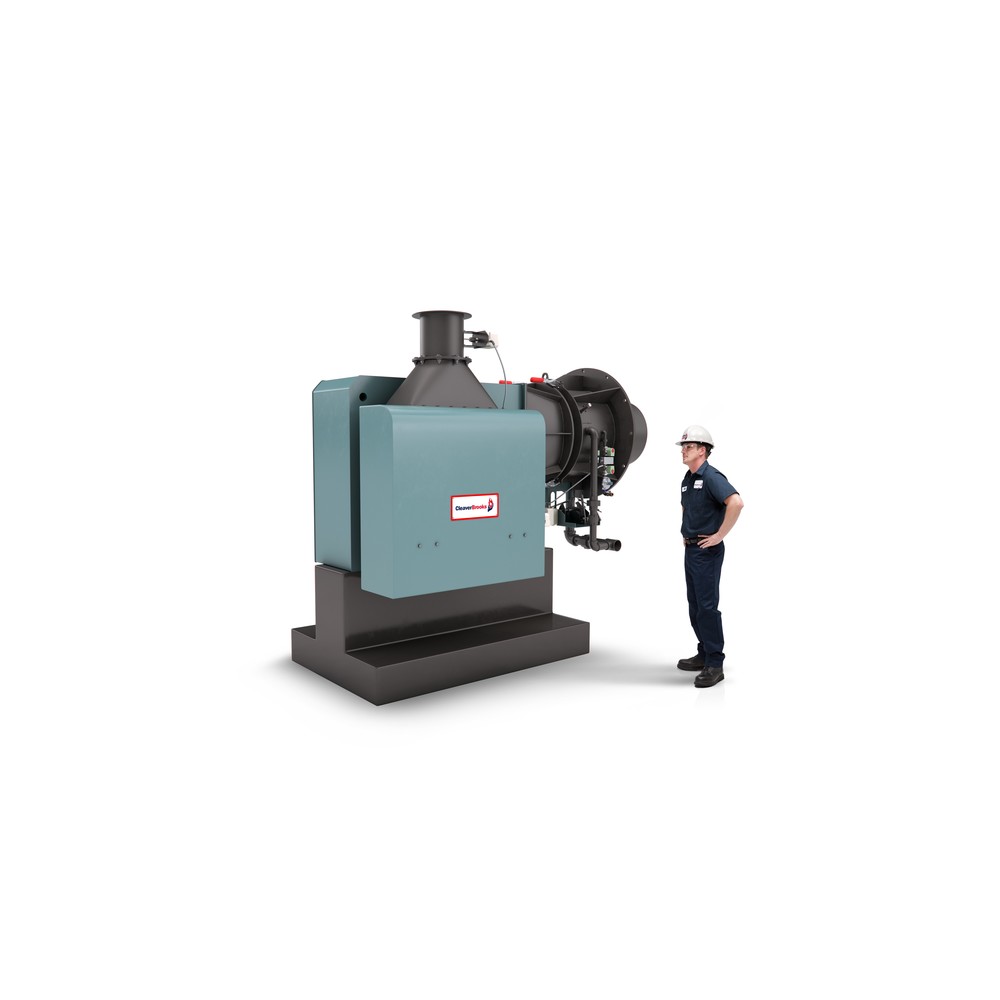

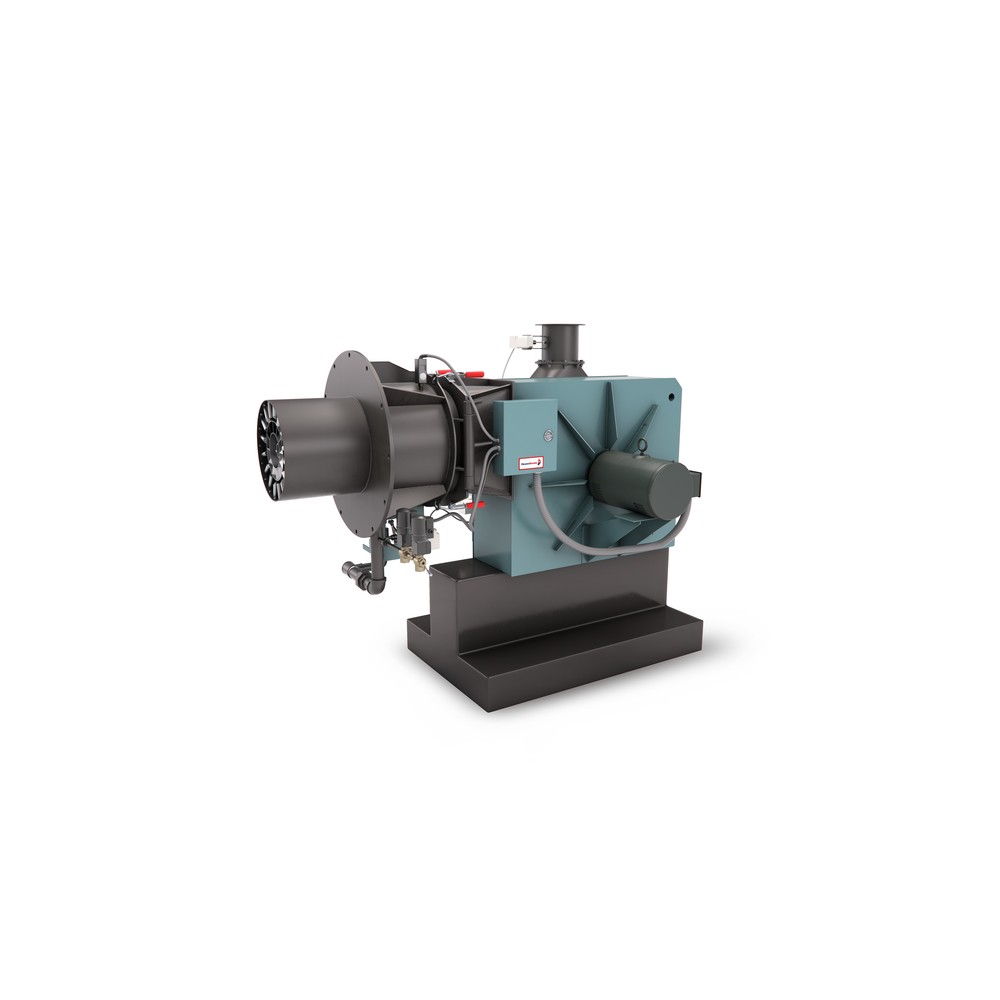

The S1 series is suitable for firetube and watertube boiler applications. The standard S1 series offers natural gas, propane gas, air-atomized #2 or #6 oil and combination gas/oil fuel options from 46.2 to 63.0 MMBTU. The LNS1 series offers natural gas, propane gas, air-atomized #2 oil and combination gas/oil fuel options from 42.0 to 63.0 MMBTU to <30 ppm NOx. The NTS1 series offers natural gas, propane/air mix, air-atomized #2 oil and combination gas/oil fuel options from 33.0 to 63.0 MMBTU to <9 PPM NOxGas manifold on oil burners comes standard for easy upgrade to combination units. Easy access for maintenance is granted through hinged rear doors and burner access panels. A backward-curved impeller provides adequate combustion air for various furnace pressures. The FGR control valve insures proper metering of FGR for maximum NOx reduction; and the FGR shutoff valve is standard, which prevents combustible gases from returning to the combustion zone.
