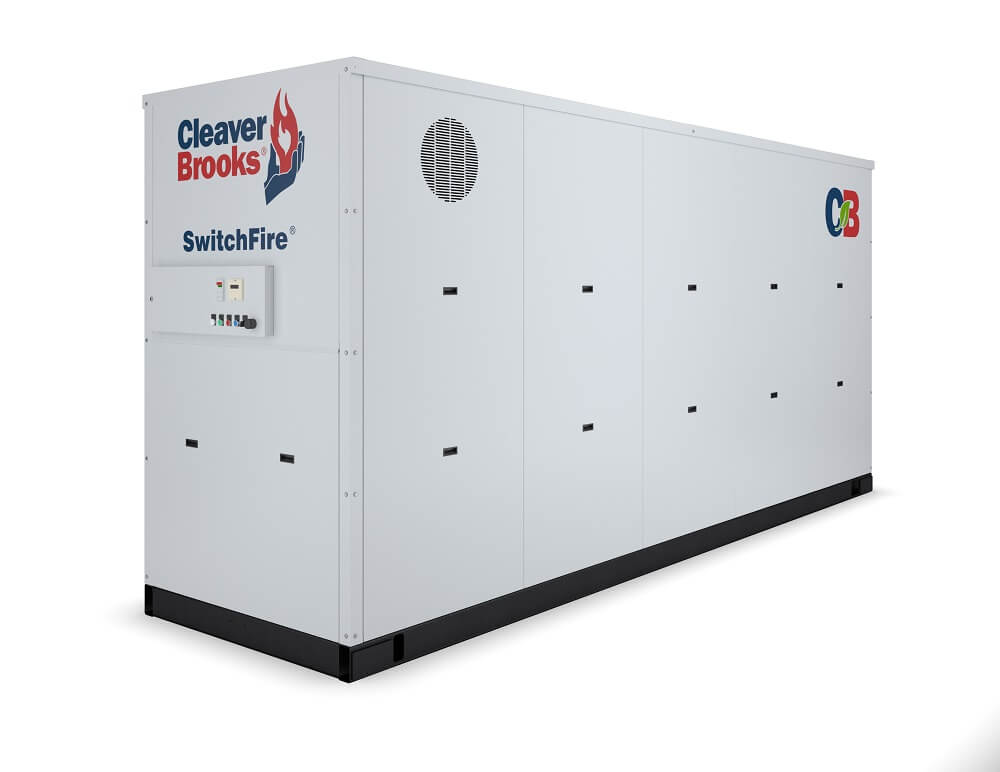

SwitchFire® Boiler

Dual-Fuel and Gas-Only Condensing

SwitchFire® Boiler

CSE2023_POYLogo_MVP (1)

  • Fully condensing high-mass firetube boiler
  • 316L stainless steel construction
  • Utilizes proprietary "EX" firetube design
  • Dual-fuel condensing - gas with #2 oil back-up
  • Gas-only condensing with premix burner
  • Robust, industrial design
  • 6000 to 12,000 MBH capacities
  • Low NOx emissions standard

 Designed for use in variable flow primary systems, the SwitchFire® boiler is a high-mass, fully condensing firetube boiler constructed of 316L stainless steel. The boiler is designed to handle variable flow pumping with a low waterside pressure drop and large water volume. With its dual-fuel (natural gas and #2 fuel oil back-up) capabilities, as well as a variety of other fuels, the SwitchFire is well suited for healthcare applications and other facilities requiring redundancy with alternate fuels. With its Weishaupt burner and controls, the SwitchFire offers industry leading efficiencies and performance with both natural gas and #2 fuel oil firing. The SwitchFire is also available as a gas only boiler with premix burner featuring up to 15:1 turndown and inherent low emissions.

cse111108_AHRILogo   culus-logo

The History of Hydronics→

  • Fully condensing with up to 98% efficiency

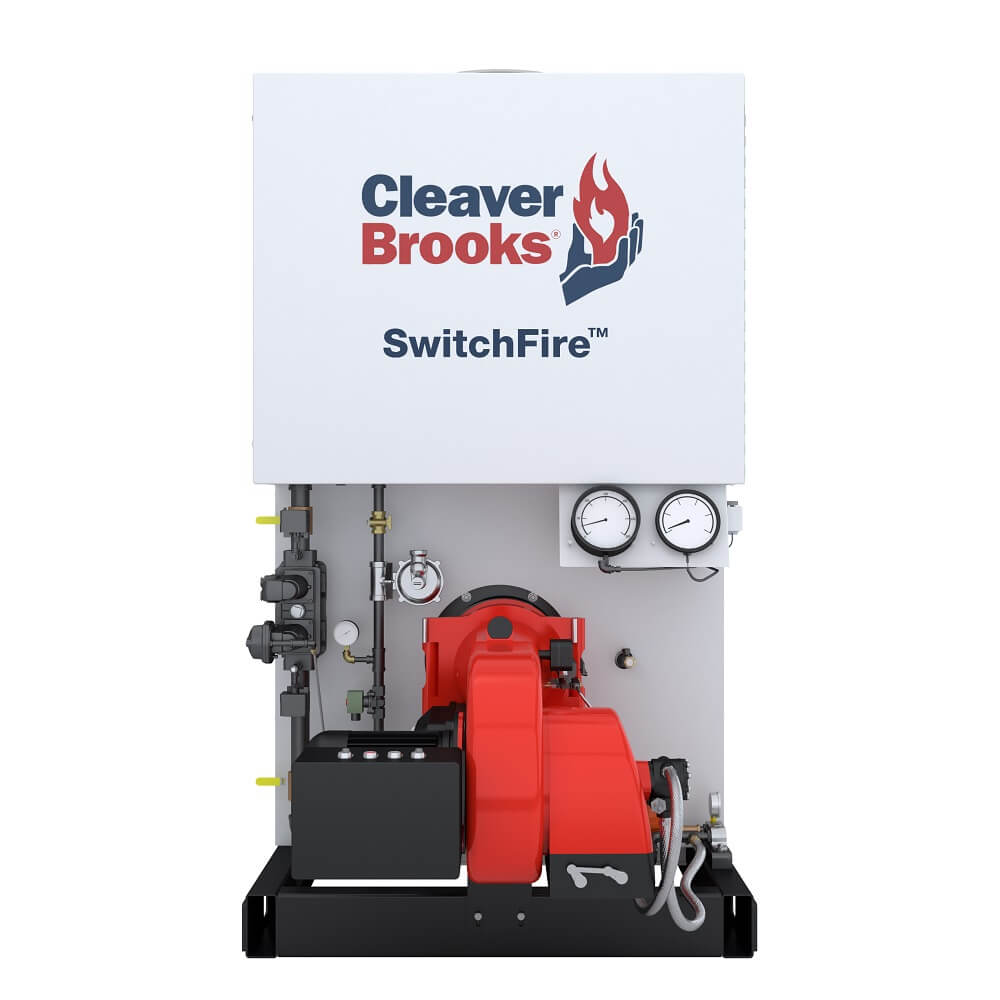

  • Weishaupt burner with gas and oil capabilities
    • Up to 6:1 fully modulating turndown
    • Sub 30 ppm NOx standard when firing natural gas
  • Premix burner for gas only operation
    • Up to 15:1 fully modulating turndown
    • Sub 20 ppm NOx standard with optional 7 ppm NOx
  • No minimum return water temperature for maximum efficiency

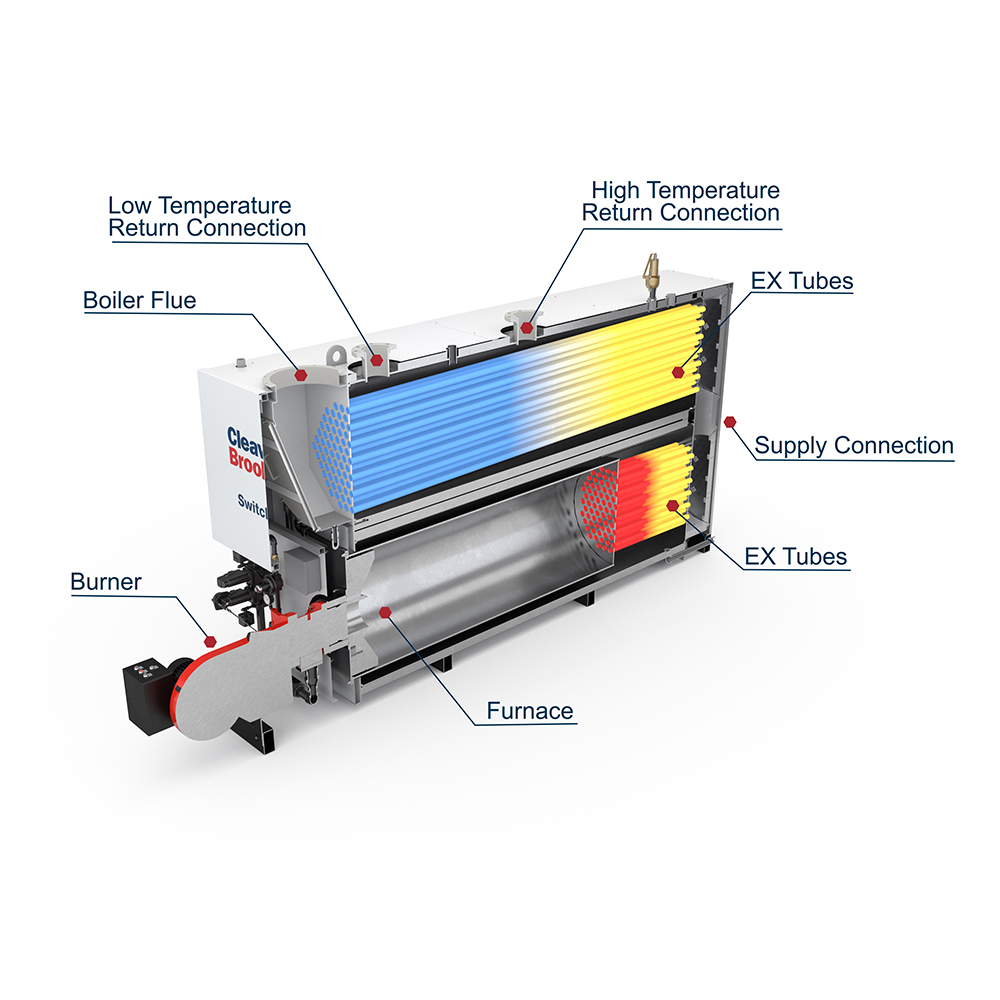

The SwitchFire integrates Cleaver-Brooks leading heat exchanger, featuring stainless steel EX rifled tubes, with proven burner and controls technology for a robust, reliable, efficient product. The SwitchFire’s burner design allows for efficient, low emissions operation when firing both gaseous fuels and #2 oil.

  • Healthcare Facilities
  • Building Heating
  • Manufacturing Processes
  • Colleges & Universities
  • AHRI Combustion Efficiency (%)
    95.6
  • AHRI Thermal Efficiency (%)
    96.3
  • Design Temperature (deg F)
    210
  • Emissions (ppm NOx)
    <30 standard, lower emissions optional
  • Fuel
    Natural Gas, #2 oil, Propane, Combination Firing
  • Input Capacity
    6000, 10000, 12000
  • Number Of Passes
    2
  • Steam Or Hot Water
    Hot Water
  • Vessel Design
    Firetube
Hydronic Boiler Room Design Guidelines
Hydronic Solutions Brochure
Hydronics Reference Guide
Key Considerations for Hydronic Closed Loop Systems - White Paper
SwitchFire® AHRI Certified Ratings
SwitchFire® Brochure
Total System Efficiency - Condensing Boiler System Mythbusting
Total System Efficiency - Condensing Boilers in Retrofit Applications
Total System Efficiency - Control Strategies and System Distribution
Total System Efficiency - Introduction
Total System Efficiency - New Design Paradigm
Total System Efficiency - System Applications and Designs
Understanding the Differences Between HHV and LHV Efficiency Calculations
SwitchFire® Boiler Book
SwitchFire® Dimensions and Ratings
SwitchFire® Specifications
