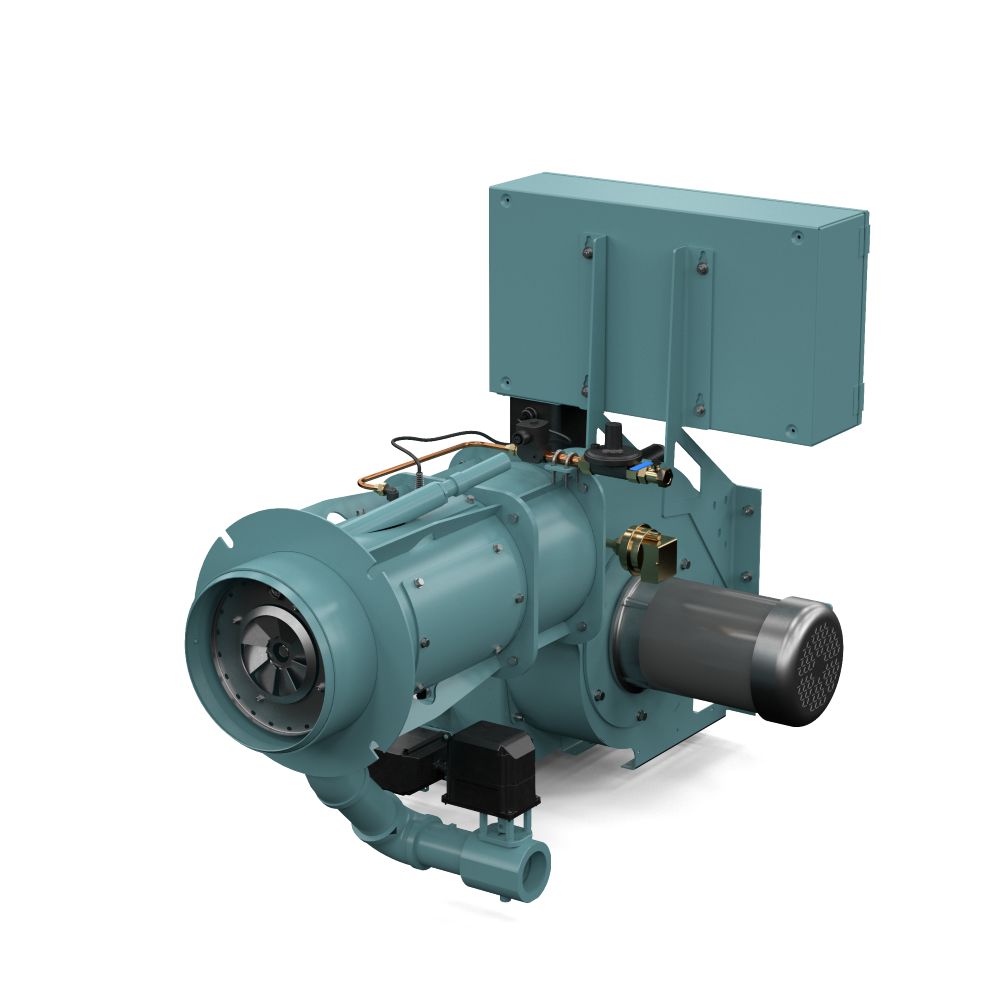

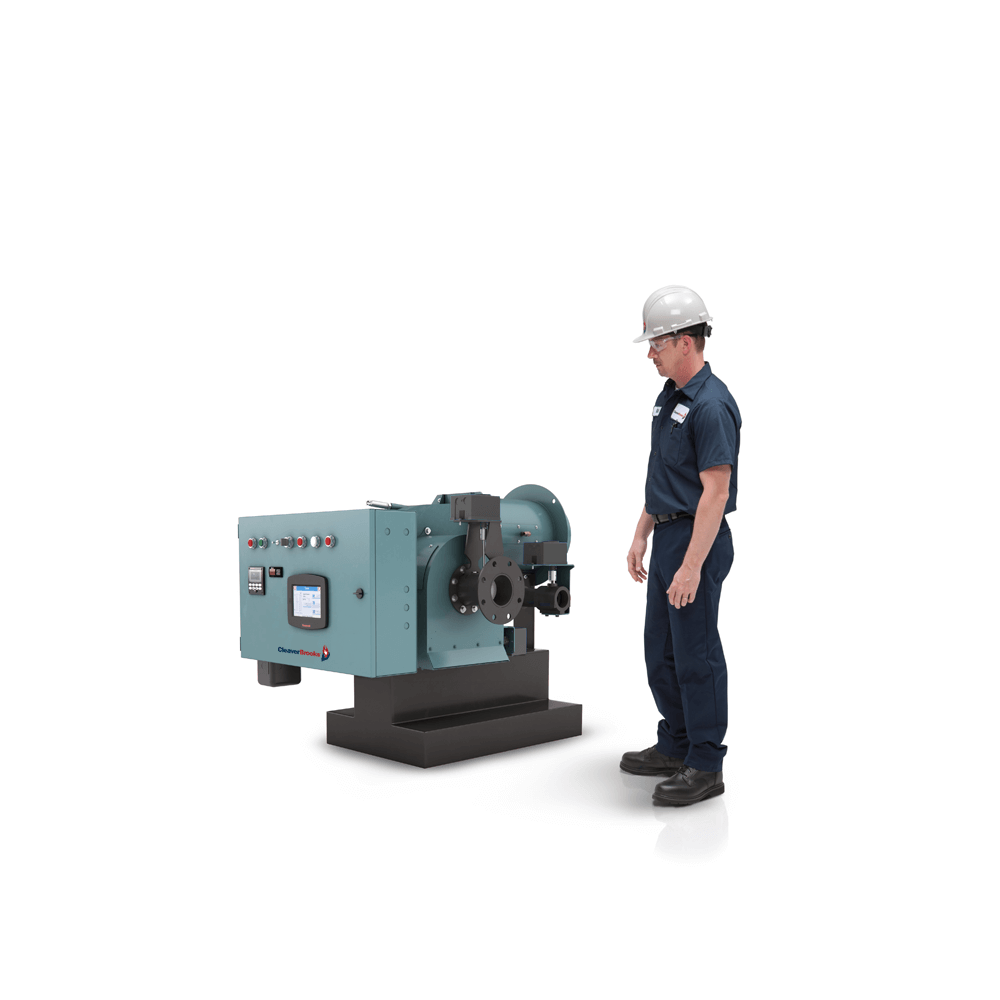

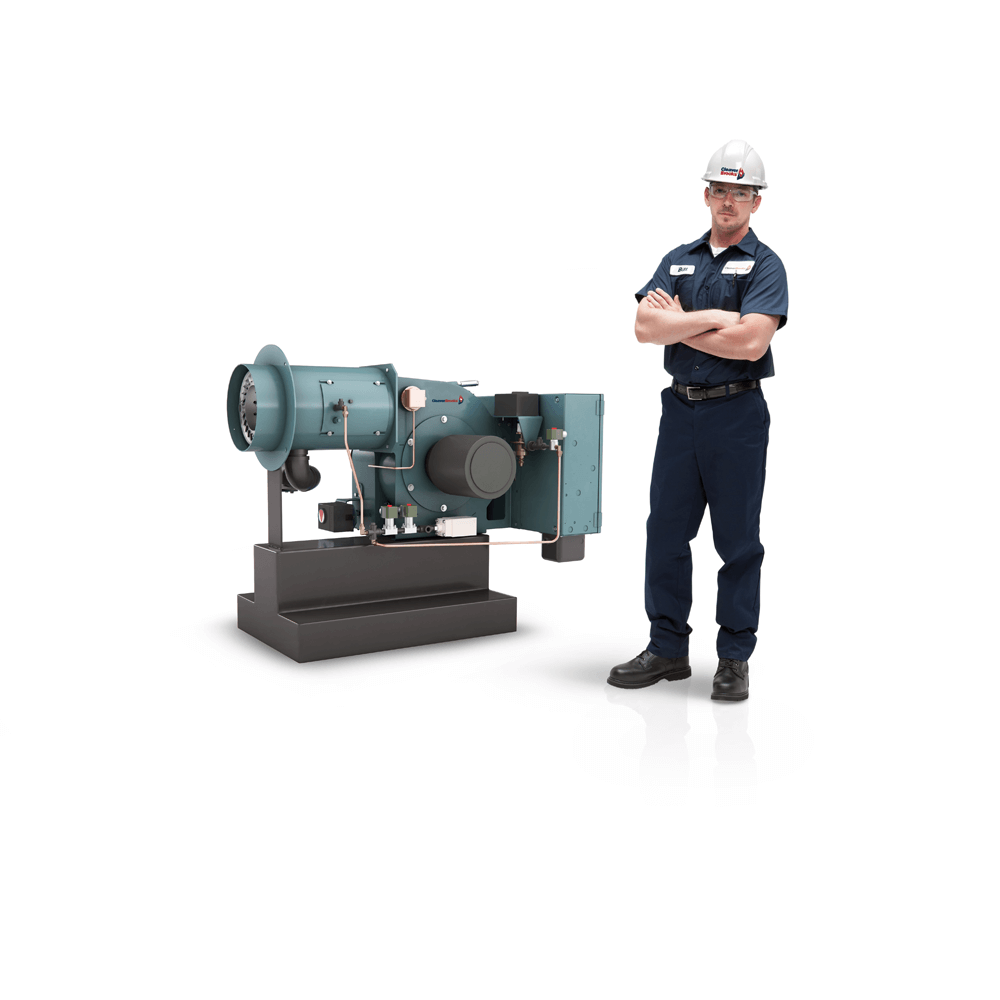

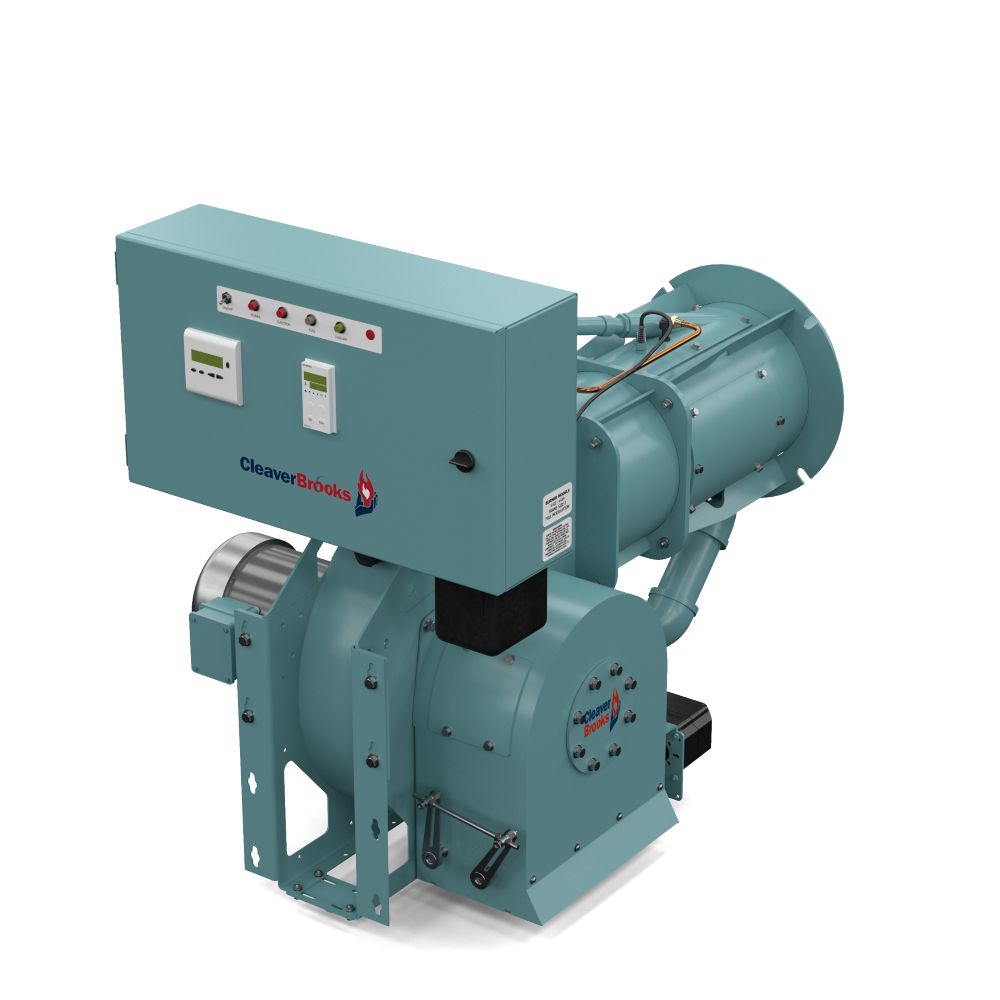

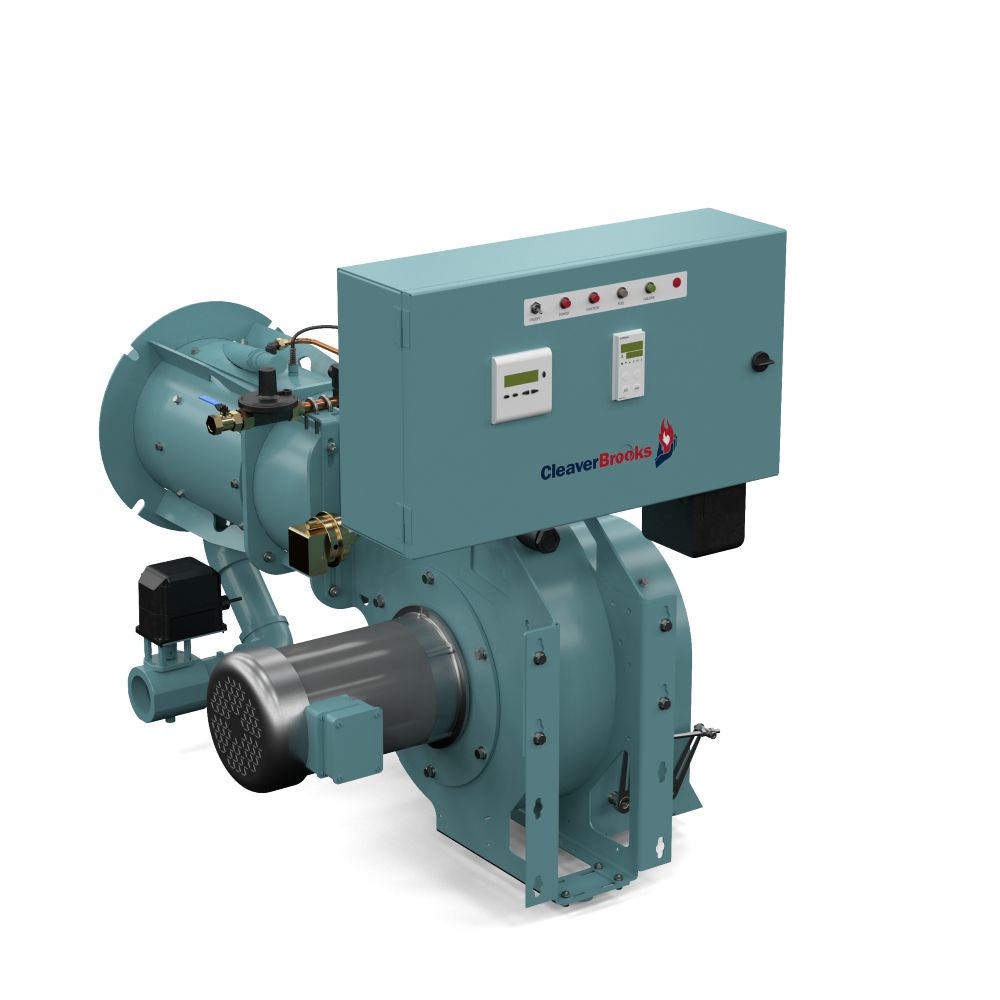

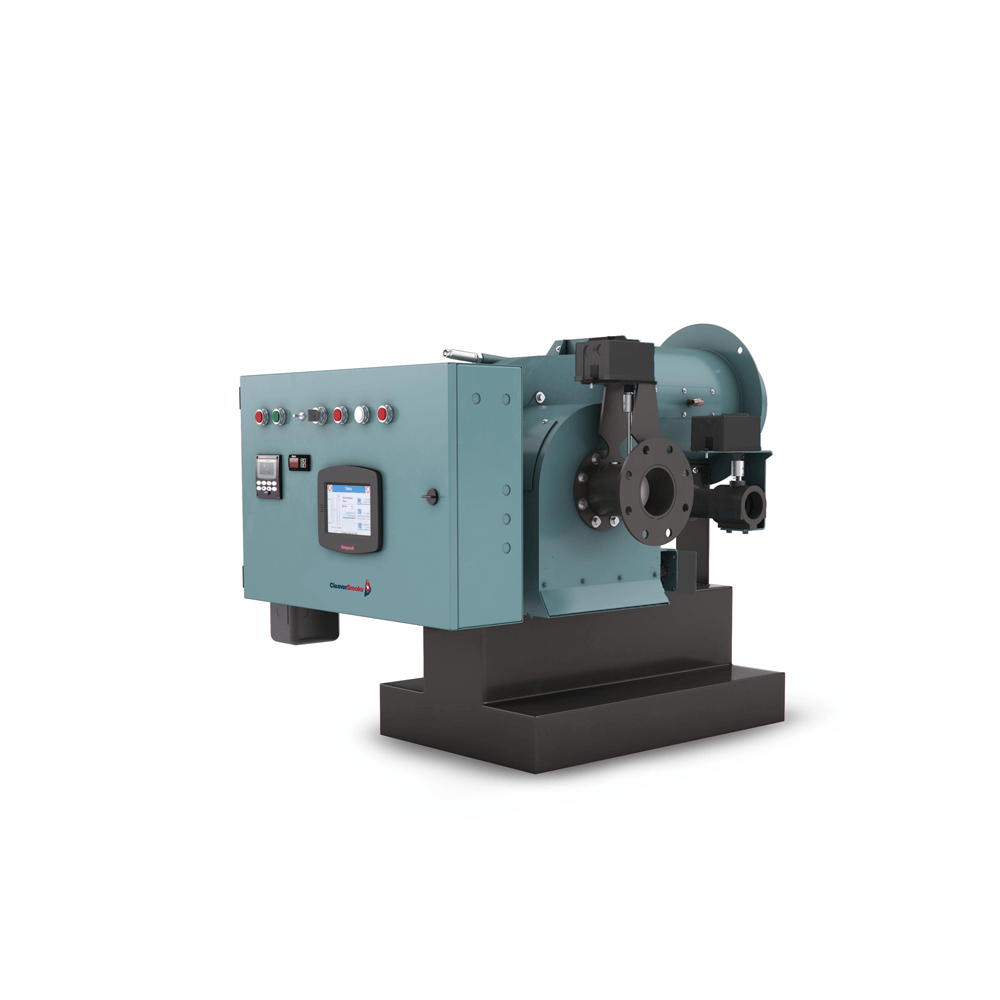

V Series Boiler Burner

Forced Draft, Dual-Fuel Burner

V Series

1.3 to 16.8 MMBTU/hr
31 to 400 HP
Gas, oil, and combination
Available to <30 ppm NOx

The ProFire® V series burners boast an aerodynamic air-damper design which permits accurate air-to-fuel settings for maximum combustion efficiency

WEBINARS

Improve Boiler Performance by Replacing the Burner →

In this webinar, attendees will learn the benefits of upgrading their boiler with a new state-of-the-art burner to improve boiler efficiency and better match facility needs.

Parallel Positioning and O2 Trim →

Parallel positioning controls help a burner to optimize its fuel-to-air ratio by using dedicated motorized actuators for the fuel and air valves.

CASE STUDY

Boiler Retrofit the Right Solution at Mount Royal University →

Reduce carbon footprint and bring boilers into compliance with local gas code

Unique air-damper design features a dual-blade configuration offering precise control of combustion air flow throughout the entire firing range
Cam trim option with 14-point adjustment range for consistent air/fuel ratios
UL/cUL listed

Suitable for firetube, watertube, firebox and cast iron boilers, the standard V series offers natural gas, propane gas, pressure atomized #2 oil and combination gas/oil fuel options from 1.3 to 16.8 MMBTU. The low NOx V series offers natural gas, propane gas, pressure atomized #2 oil, and combination gas/oil fuel options from 1.3 to 14.7 MMBTU. Using advanced technology, the V series offers high turndown on natural gas and low emission capability. The forced-draft design provides clean and efficient combustion. Design features also include a top- or rear-mount panel option, Induced FGR (Flue Gas Recirculation), an FGR modulating valve, and No. 2 oil capability for backup fuel.

Process Steam
Industrial Process
Building Heat
Hospital and Healthcare
Laundry and Dry Cleaning

Emissions (ppm NOx)

Uncontrolled, <30
Fuel

Gas, Oil, Comb.
Furnace Pressure

0.4 - 4.3
Boiler Horsepower

31 - 400
Input Capacity

1,300 - 16,800
Min Gas Pressure

8.1
Mode of Operation

Full Modulation
Oil Input (US GPH)

9.3 - 120
Turndown

Up to 8:1

Burner Application Guide

ProFire Burner Retrofit Brochure

ProFire V Series Brochure

Quick Product Reference Guide

Software to View Our 3D Models- Click Here

V Series V-105 STD Model 3D

V Series V-126 to 168 STD Model 3D

V Series V-25 to 34 STD Model 3D

V Series V-42 to 54 STD Model 3D

V Series V-63 to 84 STD Model 3D

ProFire LNVG Specifications

ProFire LNVLG Specifications

ProFire V Series Operation and Maintenance Manual

ProFire V Series Operation and Maintenance Manual - 2023

ProFire V Series Warranty

ProFire VG Specifications

ProFire VL Specifications

ProFire VLG Specifications

V Series Technical Data Sheet
